Outlet

Radiator Hose Replacement - Outlet (L61)

^ Tools Required
- J 38185 Hose Clamp Pliers

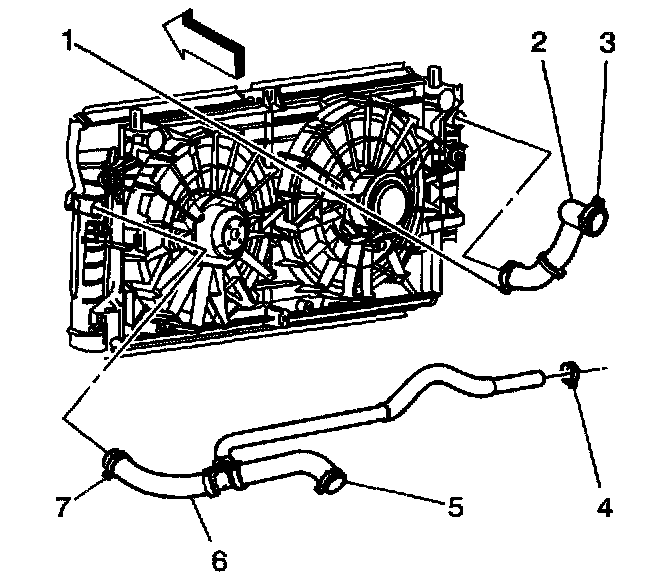

Removal Procedure





1. Drain the cooling system.
2. Use the J 38185 in order to reposition the surge tank outlet/radiator outlet hose clamp (4) from the surge tank.
3. Remove the surge tank outlet/radiator outlet hose (6) from the surge tank.
4. Use the J 38185 in order to reposition the radiator hose clamp (5) from the cylinder head.
5. Remove the surge tank outlet/radiator outlet hose (6) from the cylinder head.
6. Use the J 38185 in order to reposition the radiator hose clamp (7) from the radiator.
7. Remove the surge tank outlet/radiator outlet hose (61 from the radiator.

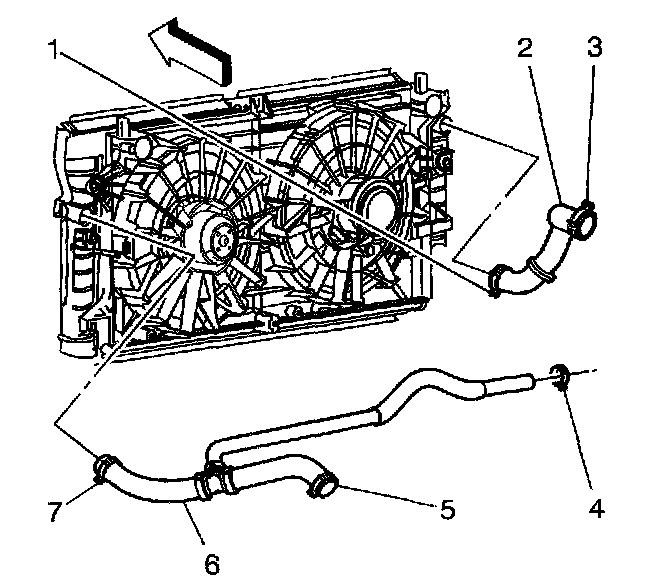

Installation Procedure





1. Install the surge tank outlet/radiator outlet hose (6) to the radiator.
2. Use the J 38185 in order to reposition the radiator hose clamp (7) to the radiator.
3. Install the surge tank outlet/radiator outlet hose (6) to the cylinder head.
4. Use the J 38185 in order to reposition the surge tank outlet/radiator outlet hose clamp (5) to the cylinder head.
5. Install the surge tank outlet/radiator outlet hose (6) to the surge tank.
6. Use the J 38185 in order to reposition the surge tank outlet/radiator outlet hose clamp (4) to the surge tank.
7. Fill the cooling system.
