Refrigerant Pressure Sensor / Switch: Service and Repair

AIR CONDITIONING (A/C) REFRIGERANT PRESSURE SENSOR REPLACEMENT

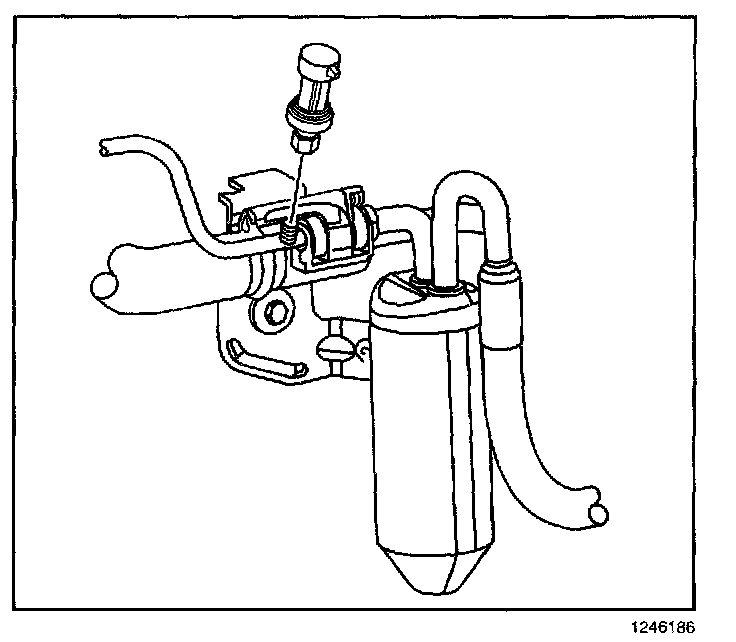

REMOVAL PROCEDURE




1. Remove the air cleaner assembly.
2. Disconnect the electrical connector from the A/C refrigerant pressure sensor.
3. Remove the refrigerant pressure sensor from the liquid line.

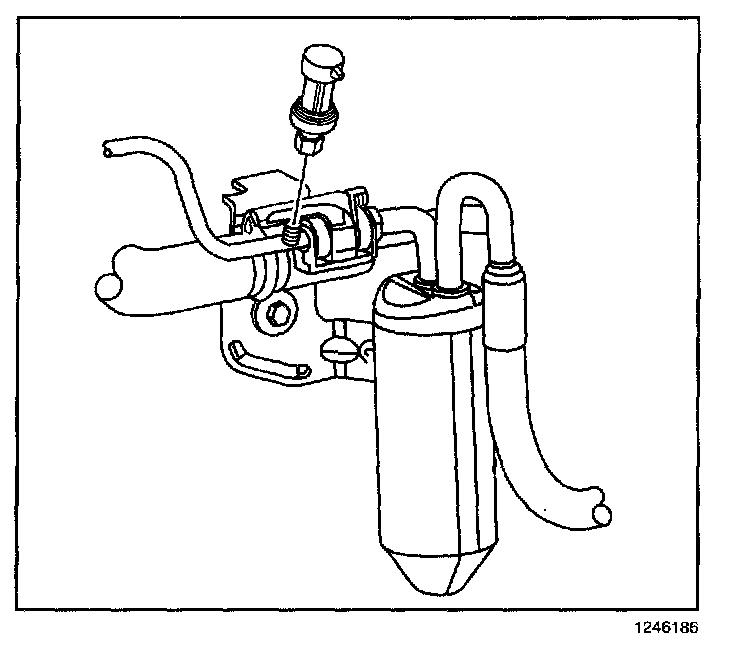

INSTALLATION PROCEDURE




1. Install the new O-ring seal.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the refrigerant pressure sensor to the liquid line.

Tighten
Tighten the sensor to 4.7 N.m (41 lb in).

3. Connect the electrical connector to the A/C refrigerant pressure sensor.
4. Install the air cleaner assembly.
