Catalyst Shield: Service and Repair

Removal Procedure





1. Raise and support the vehicle.

Notice: Refer to Catalytic Converter Movement in Service Precautions.

2. Support the exhaust system.
3. Remove the catalytic converter.

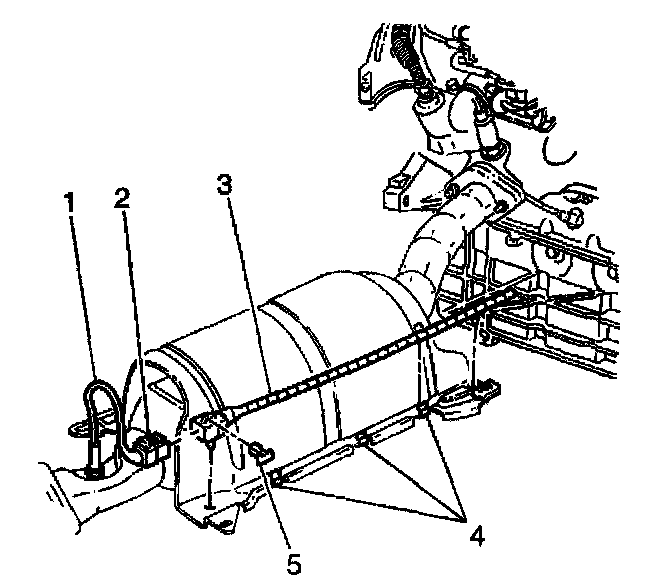

4. Remove the oxygen sensor wiring harness (3) from the catalytic converter heat shield.

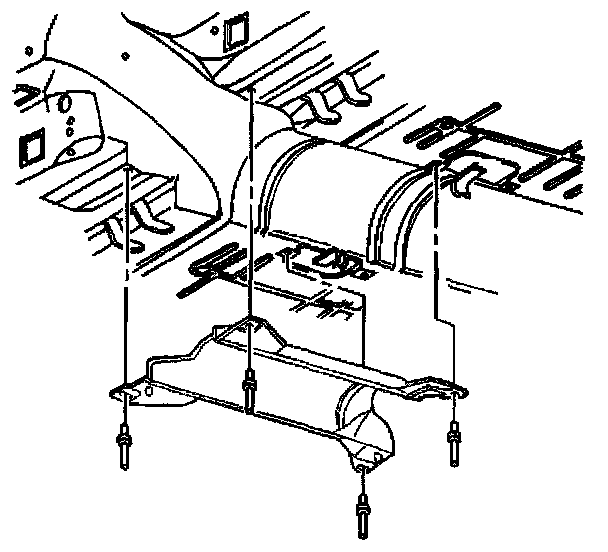

5. Remove the catalytic converter heat shield rivets.
6. Remove the catalytic converter heat shield.


Installation Procedure





1. Install the catalytic converter heat shield.

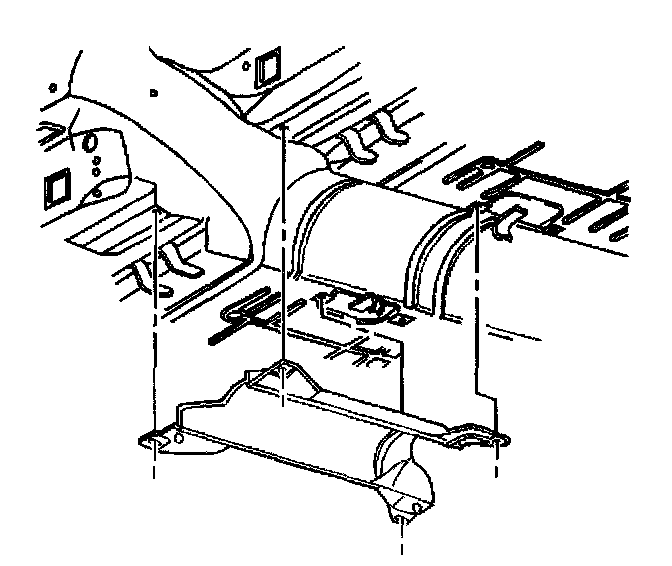

2. Install the converter heat shield rivets.

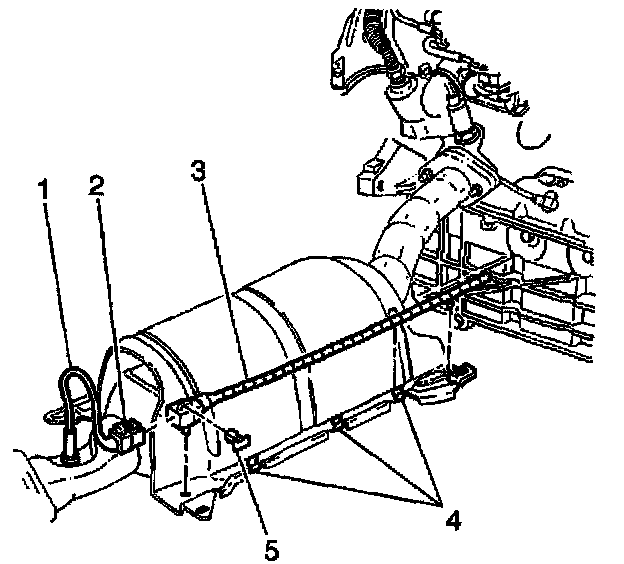

3. Install the oxygen sensor wiring harness (3) to the catalytic converter heat shield.
4. Install the catalytic converter.
5. Remove the support from the exhaust system.
6. Inspect the exhaust system for leaks and underbody contact.
7. Lower the vehicle.
