Cruise Control Switch: Description and Operation

CLUTCH CONTROL RELEASE SWITCH DESCRIPTION
The cruise control release switch is mounted under the instrument panel directly above the clutch pedal. Whenever the clutch pedal is pressed, the cruise control release switch closes and provides a ground to the cruise control module. The cruise control module disengages cruise control system operation as soon as this ground signal is sensed.

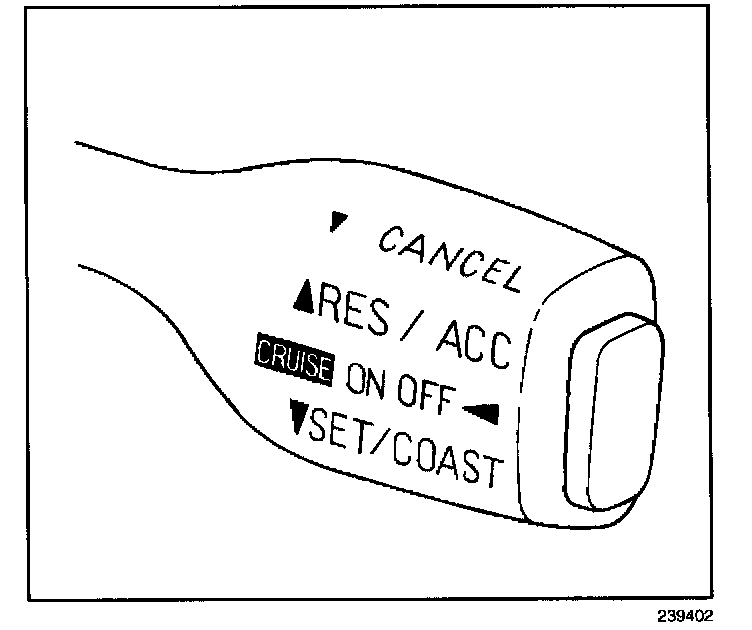

CRUISE ON-OFF SWITCH




The cruise on-off switch is a momentary contact type button located on the end of the cruise control switch. The purpose of the cruise on-off switch is to turn the cruise control system ON and OFF.
