Aspirator: Service and Repair

ASPIRATOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the I/P carrier.
2. Remove the aspirator hose mounting screw.

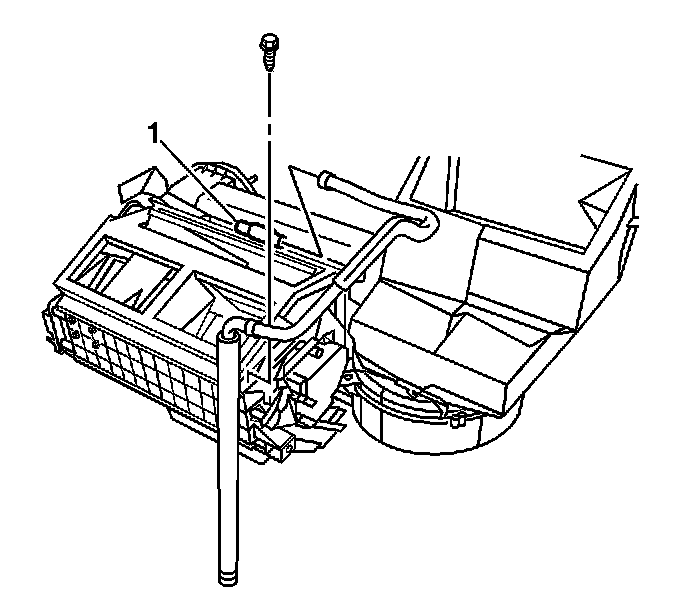

3. Disconnect the aspirator hose from the aspirator duct adapter (1).
4. Remove the aspirator hose from the HVAC module.

INSTALLATION PROCEDURE




1. Install the aspirator hose to the HVAC module.
2. Install the aspirator hose retaining screw.

Tighten the screw 0.9 N.m (8 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Connect the aspirator hose to the aspirator duct adapter (1).
4. Install the I/P carrier.
