Home >> Pontiac >> 2005 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RR

RR

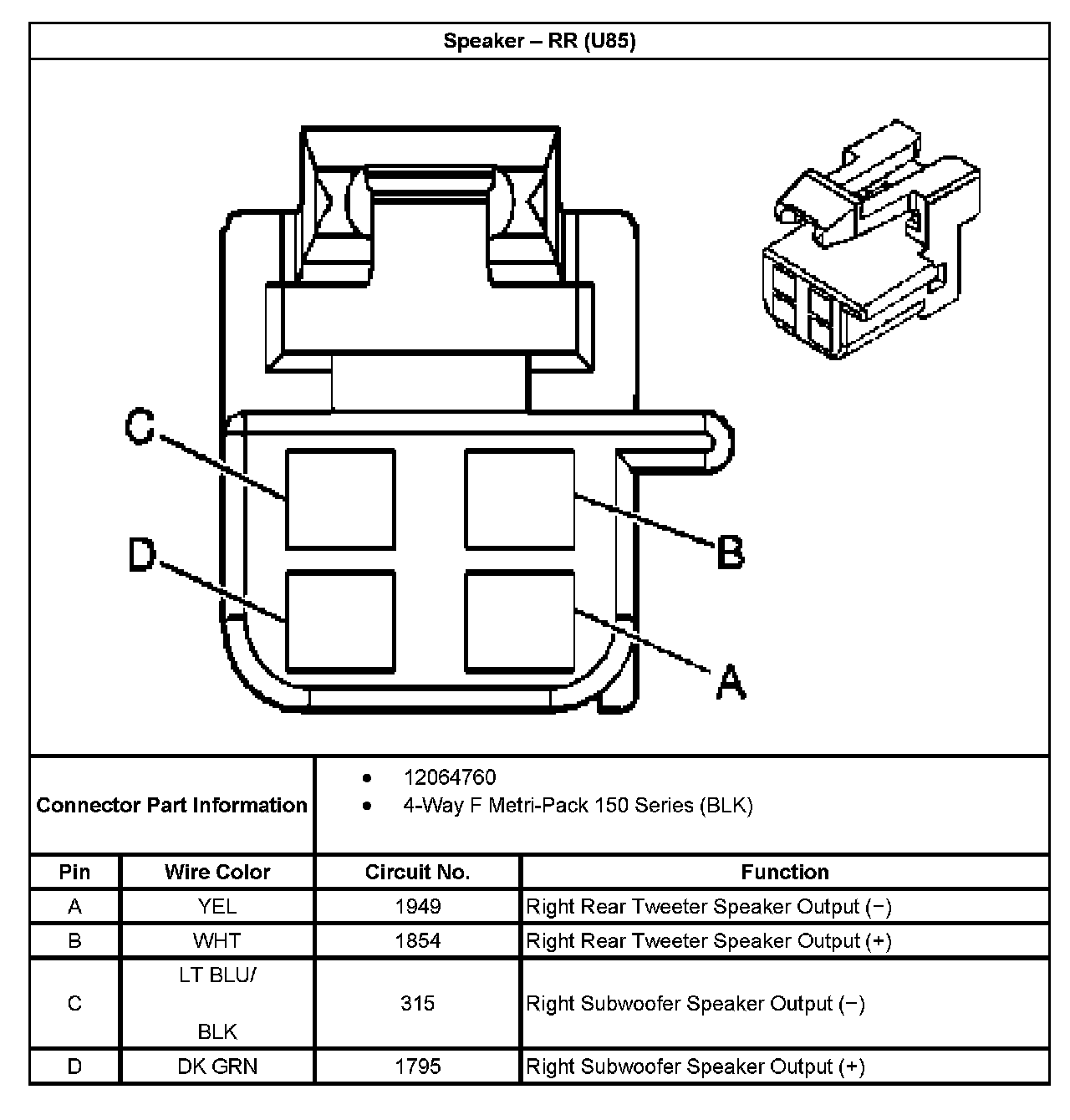

Speaker - RR (With RPO Code U85):

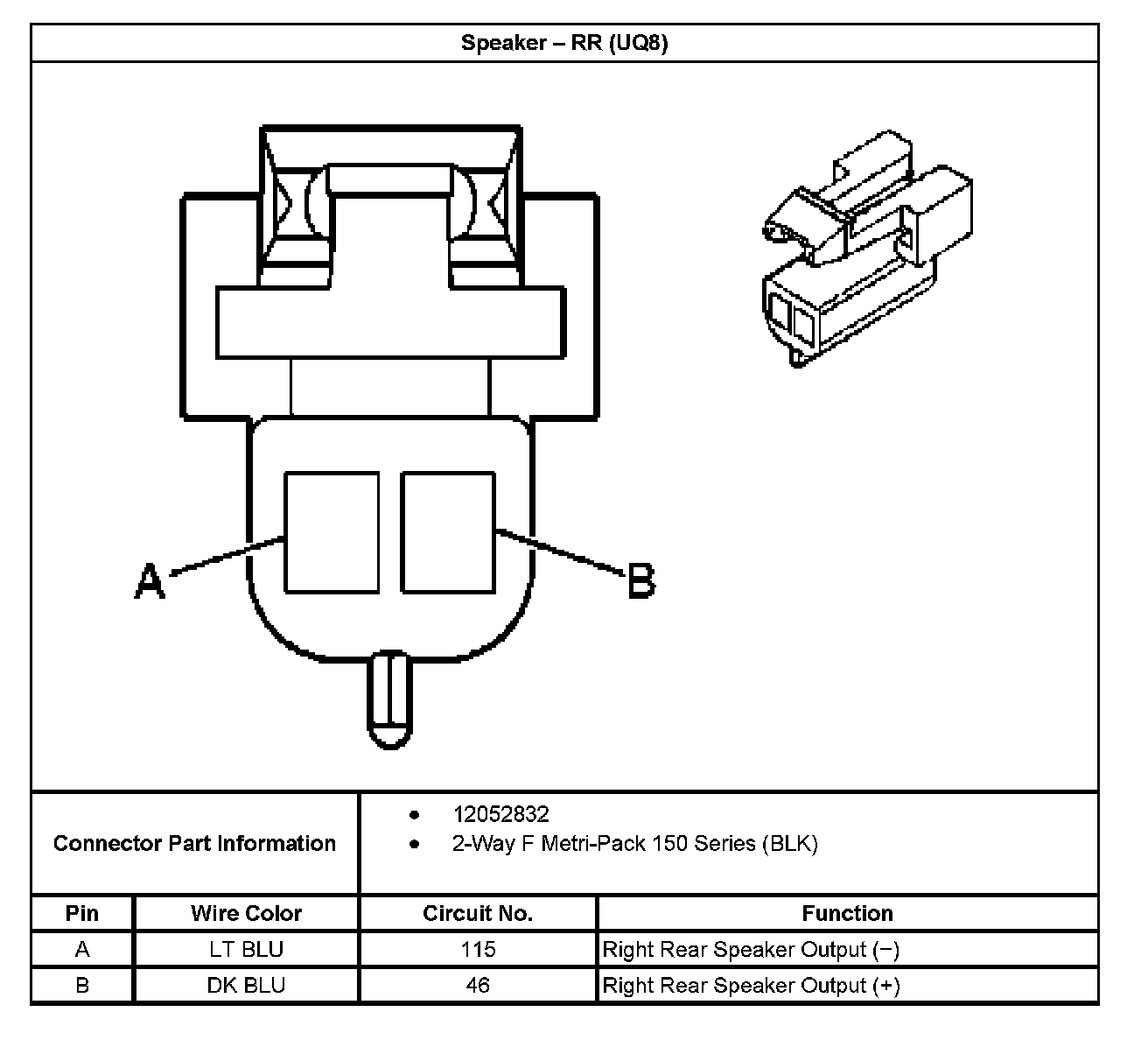

Speaker - RR (With RPO Code UQ8):
