Fan Shroud: Service and Repair

Fan Shroud Replacement

Removal Procedure
1. Remove the cooling fan assembly from the vehicle.





2. Scribe the position of each of the cooling fan blades on the cooling fan motor shafts.
3. Remove the cooling fan blade retaining clips and discard.

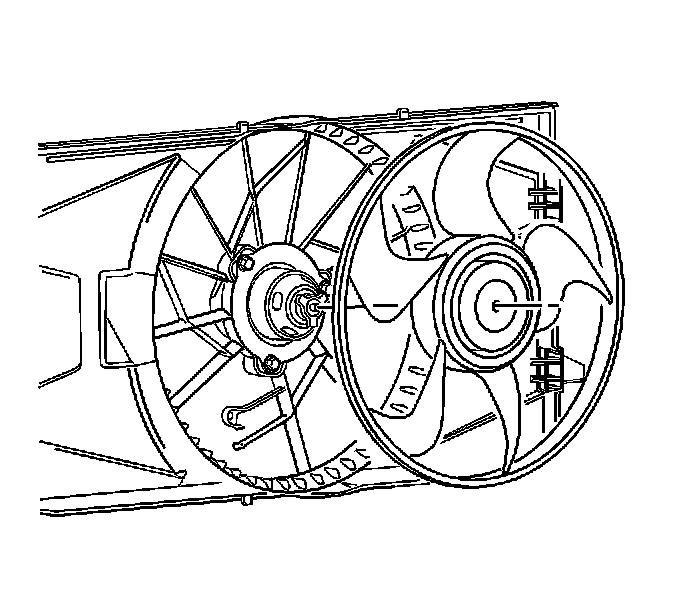

4. Remove the cooling fan blades.

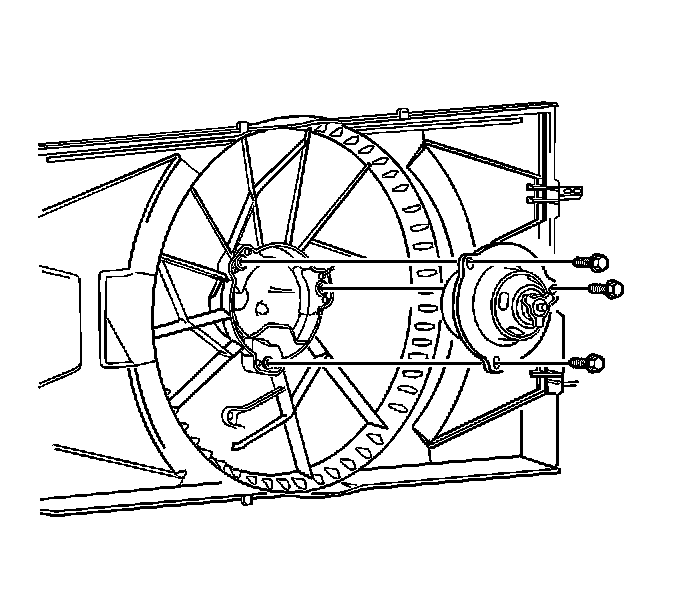

5. Remove the cooling fan motor bolts and remove the cooling fan motors.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the cooling fan motors and bolts.
^ Tighten the bolts to 8 Nm (70 inch lbs.).





2. Align the scribe marks on the cooling fan blades and motor shafts.
3. Install the cooling fan blades.





4. Install new retaining clips to the cooling fan blades.
5. Install the cooling fan assembly into the vehicle.
