16. Differential Case Assemble

Differential Case Assemble

^ Tools Required
- 87-92-210 Differential Bearing Support
- SA9120T Differential Bearing Installer

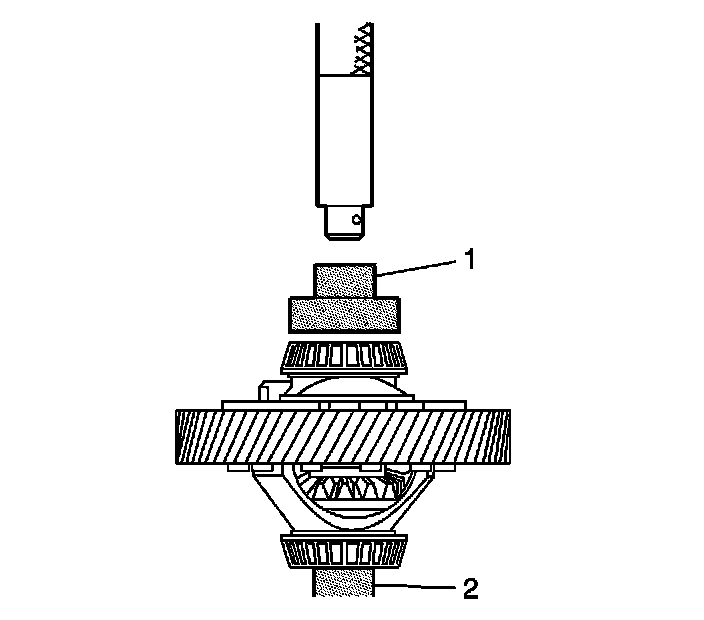

1. Press the differential bearings onto the differential assembly using the SA9120T (1). Use the 87-92-210 (2) under the differential as shown.
2. To change the differential bearing races, refer to Clutch Housing Assemble and Transaxle Case Disassemble or Transaxle Case Assemble.
