Home >> Pontiac >> 2005 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Diagrams

Amplifier: Diagrams

Audio Amplifier (With RPO Code U85) Part 1:



Audio Amplifier (With RPO Code U85) Part 2:

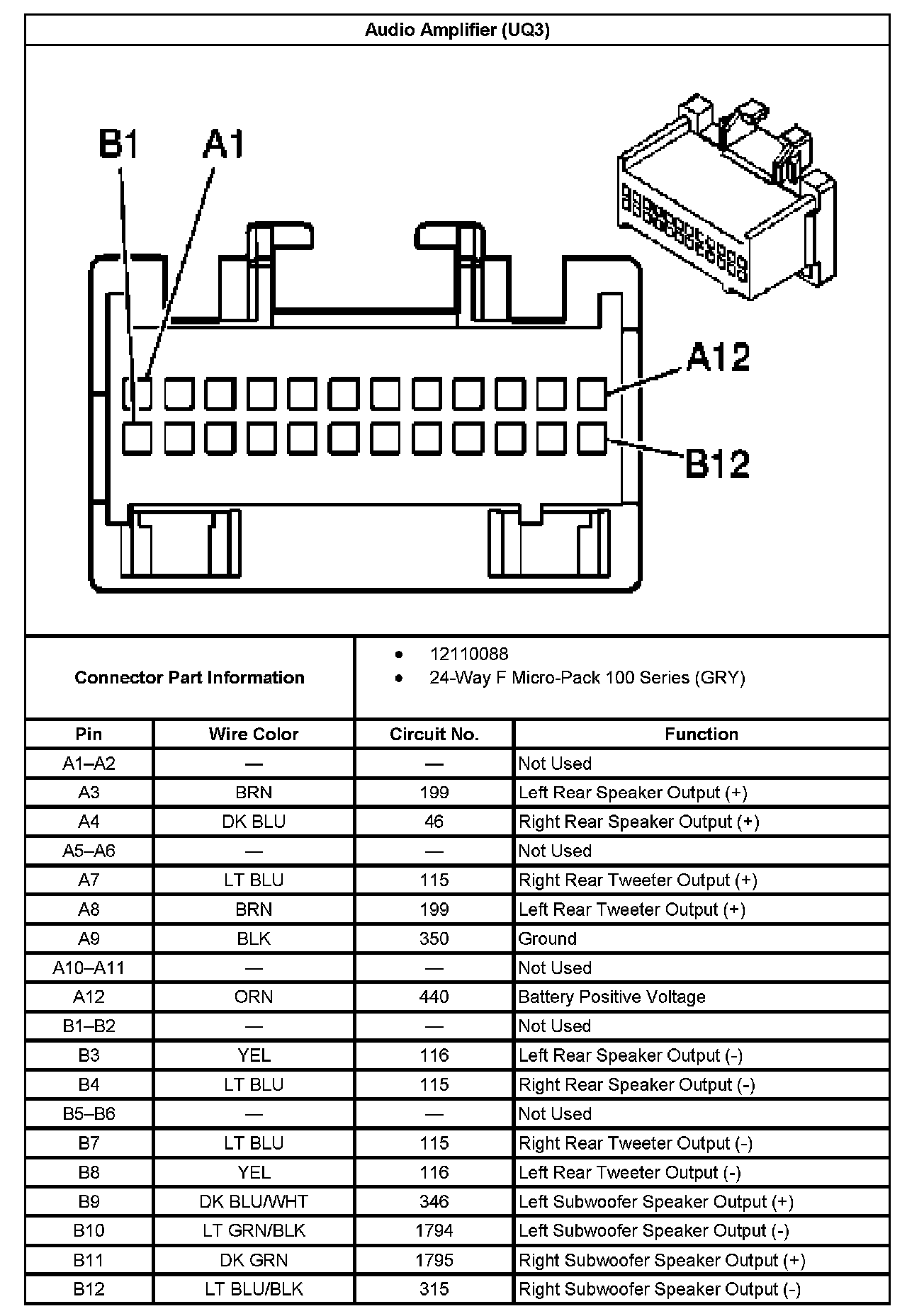

Audio Amplifier (With RPO Code UQ3):
