HVAC Control Assembly Replacement



HVAC CONTROL ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the I/P trim plate.
2. Remove the HVAC control assembly retaining screws.

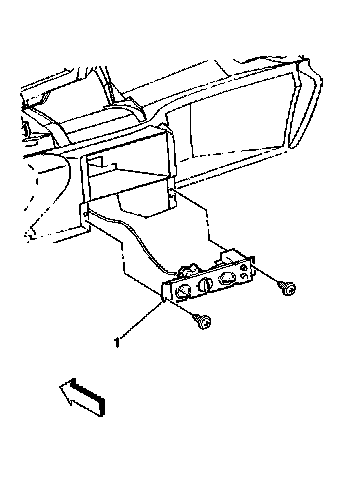

3. Pull the HVAC control assembly (1) away from the I/P.
4. Disconnect the electrical connections.
5. Disconnect the mode control cable.
6. Disconnect the temperature control cable.

INSTALLATION PROCEDURE




1. Connect the electrical connections.
2. Connect the mode control cable.
3. Connect the temperature control cable.
4. Install the HVAC control assembly (1) to the I/P.
5. Install the HVAC control assembly retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screw to 2 N.m (18 lb in).

6. Install the I/P trim plate.
