Air Register: Service and Repair

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - OUTER

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) trim pad.

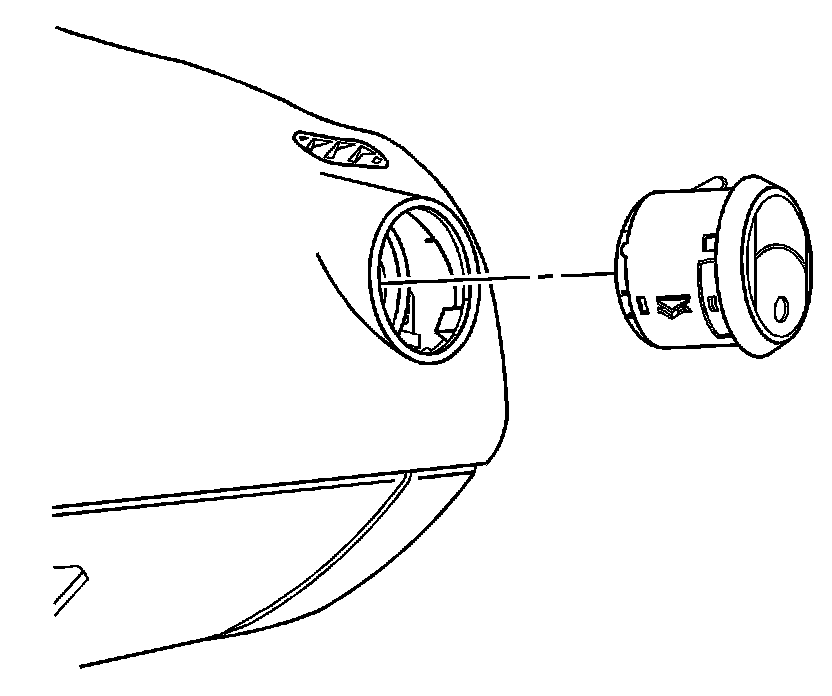

2. Using a small flat-bladed tool, release the air outlet deflector tabs.




3. Remove the I/P air outlet deflector.

INSTALLATION PROCEDURE
1. Install the I/P air outlet deflector to the I/P trim pad.
2. Install the I/P trim pad.
