Front Floor Console Compartment Replacement

Front Floor Console Compartment Replacement

Removal Procedure





1. Lift up the floor console armrest.

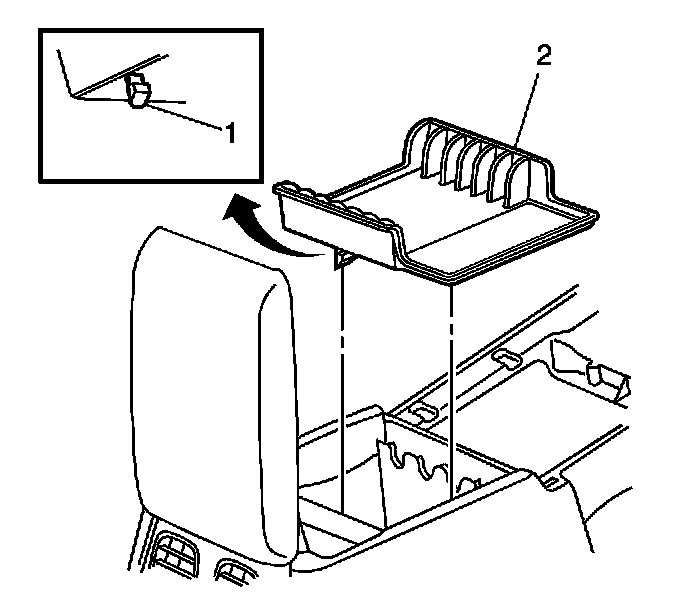

2. Remove the floor console compartment (2) by carefully grasping the console compartment (2) and disengaging the 2 retaining tabs (1).
3. Remove the floor console compartment (2) from the floor console.



Installation Procedure





1. Install the floor console compartment (2) to the floor console making sure the 2 retaining tabs are engaged.
2. Close the floor console armrest.
