Head Restraint Guide Replacement - Rear No. 1

Head Restraint Guide Replacement - Rear No. 1

Removal Procedure

1. Remove the rear seat head restraint. Refer to Head Restraint Replacement - Rear Seat (Head Restraint Replacement - Rear Seat) .
2. Remove the rear seat back rest. Refer to Seat Back Replacement - Rear (Seat Back Replacement - Rear) .

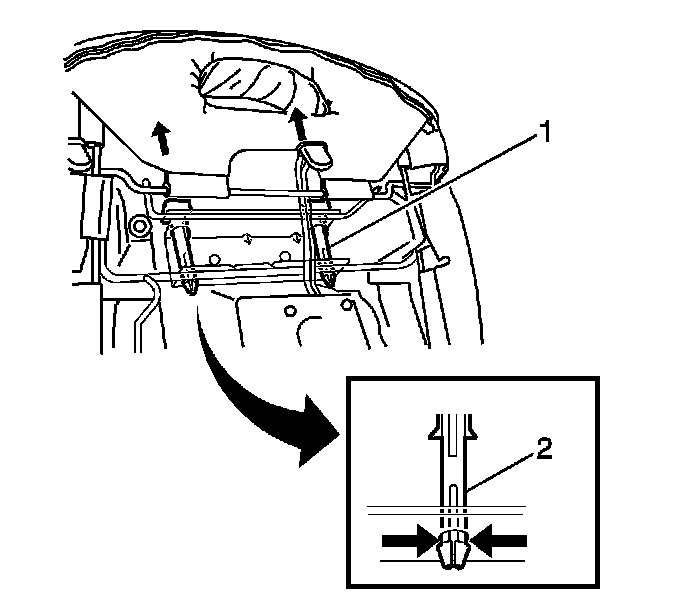

3. Squeeze the locking prongs of the seat restraint guide (1) together while pulling upward out of the seat backrest.



Installation Procedure

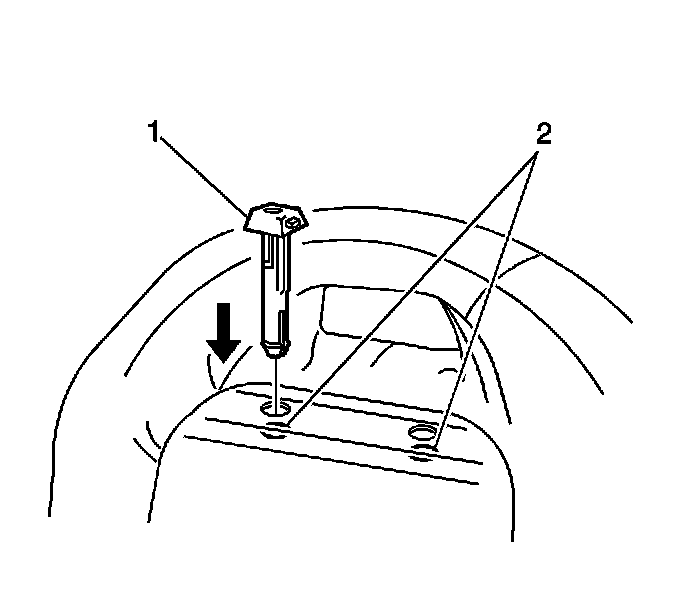

1. Align the locating tabs (1) with the key-way (2) in the seat back frame, then push downward until the head restraint guide locks in place.
2. Install the rear seat back rest. Refer to Seat Back Replacement - Rear (Seat Back Replacement - Rear) .
3. Install the rear seat head restraint. Refer to Head Restraint Replacement - Rear Seat (Head Restraint Replacement - Rear Seat) .
