P2138
DTC P2138
CIRCUIT DESCRIPTION
The accelerator pedal position (APP) sensor is made up of 2 sensors that are housed inside one assembly. The engine control module (ECM) supplies a separate 5-volt reference circuit and a low reference circuit for each of the sensors. The 5-volt reference for APP sensor 1 is supplied from the same source in the ECM as the 5-volt reference for the mass air flow (MAF) sensor and the fuel tank pressure (FTP) sensor. The 5-volt reference voltage for all of the sensors is supplied on separate ECM terminals, but the terminals are connected internally to a voltage supply. The APP sensor 1 sends a signal from the sensor to the ECM indicating the accelerator pedal position. The ECM actuates the throttle plates based on this information. If the ECM detects that the APP sensors are not within a predicted value from each other, DTC P2138 sets.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC P2138 Accelerator Pedal Position (APP) Sensor 1-2 Correlation
CONDITIONS FOR RUNNING THE DTC
- DTCs P0601, P0602, P0603, P0604, P0606, P0607, P0641, P0651, P2120, P2122, P2123, P2125, P2127, P2128 are not set.
- The ignition is ON.
- DTC P2138 runs continuously when the above conditions are met.
CONDITIONS FOR SETTING THE DTC
The ECM detects that the difference between APP sensor 1 and APP sensor 2 is more than the predicted value for less than one second.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Freeze Frame and/or the Failure Records.
- The control module commands the TAC system to operate in the Reduced Engine Power mode.
- A message center or an indicator displays Reduced Engine Power.
- Under certain conditions the control module commands the engine OFF.
CONDITIONS FOR CLEARING THE MIL/DTC
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.

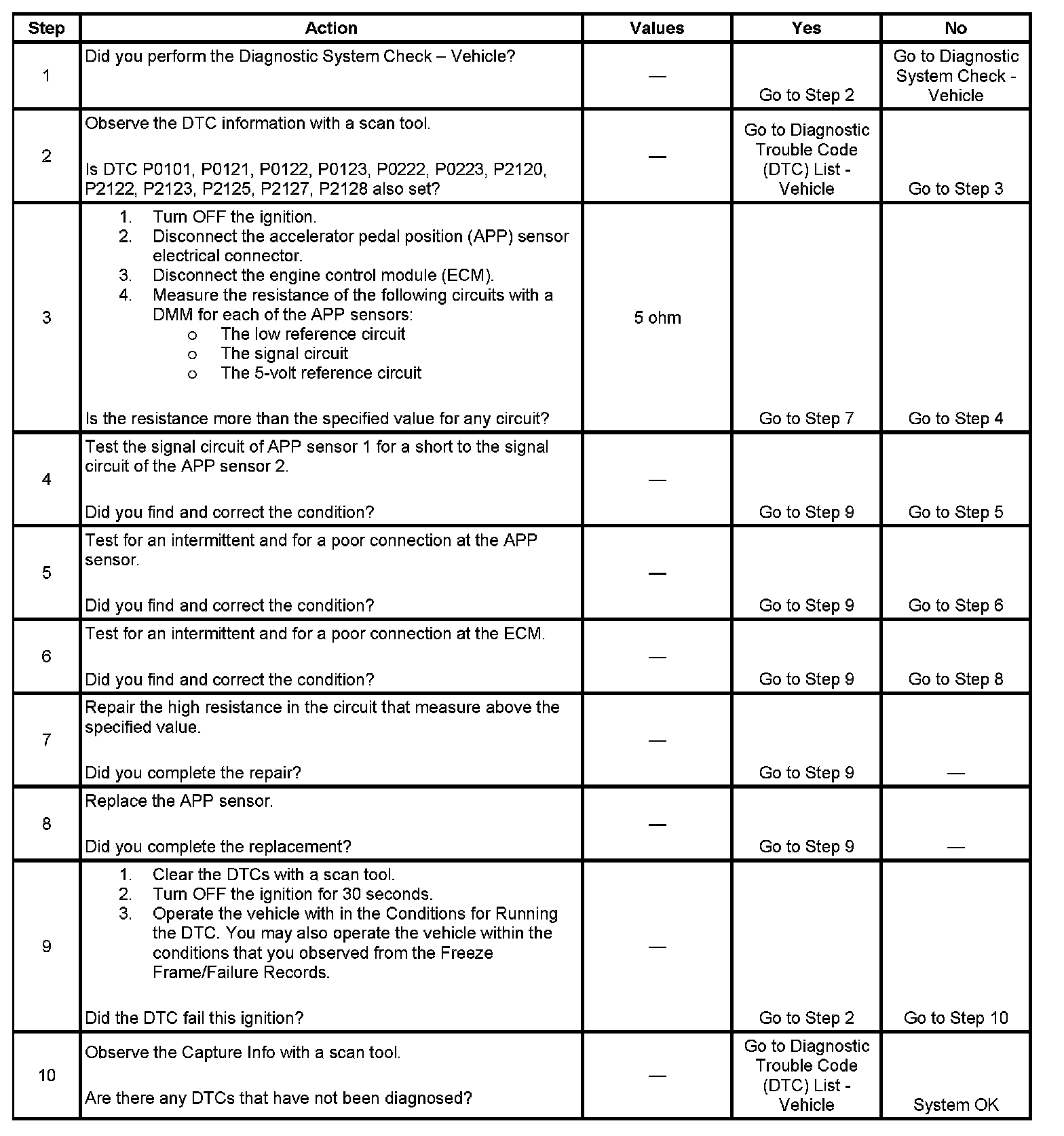

TEST
