Home >> Pontiac >> 2006 >> Montana SV6 FWD V6-3.9L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp

Courtesy Lamp

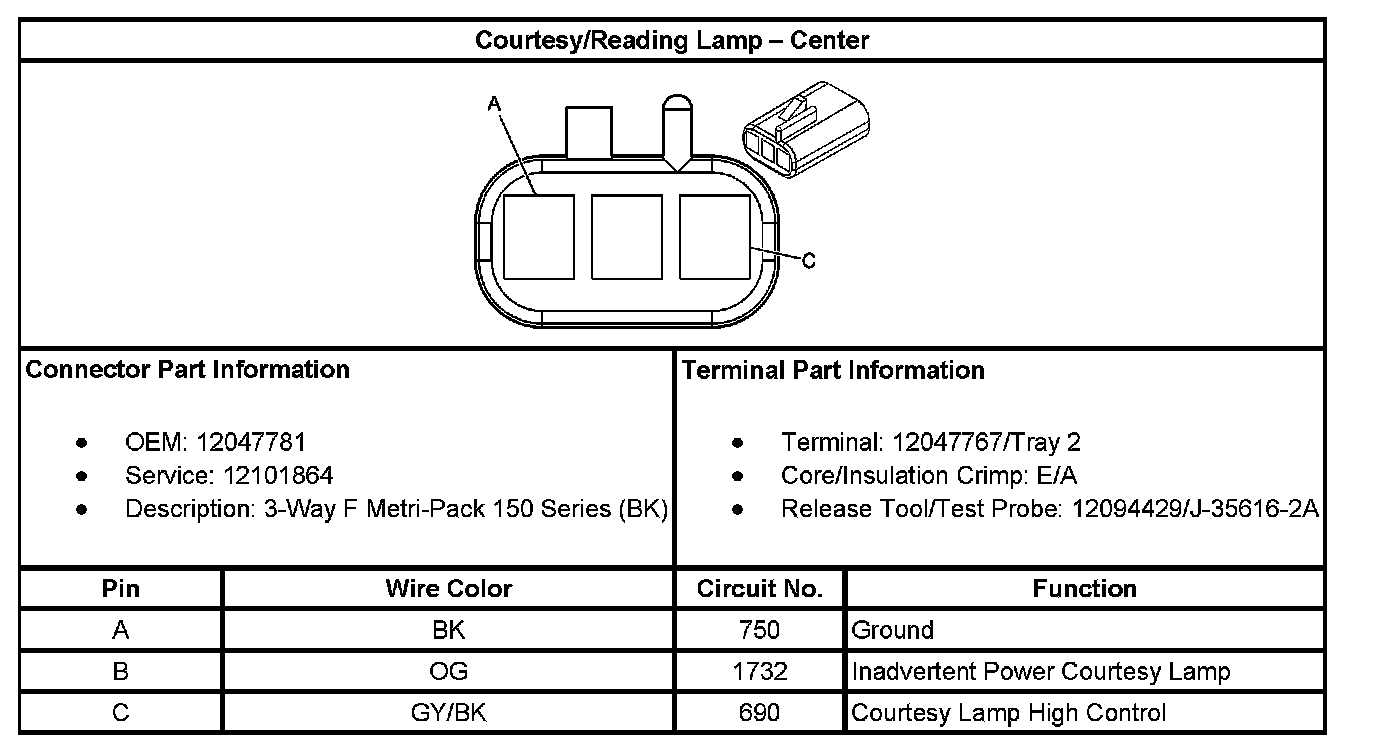

Courtesy/Reading Lamp - Center:



Courtesy/Reading Lamp - Front:
