Montana SV6 FWD V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Master Connector List
Master Connector List
C101 - C313:

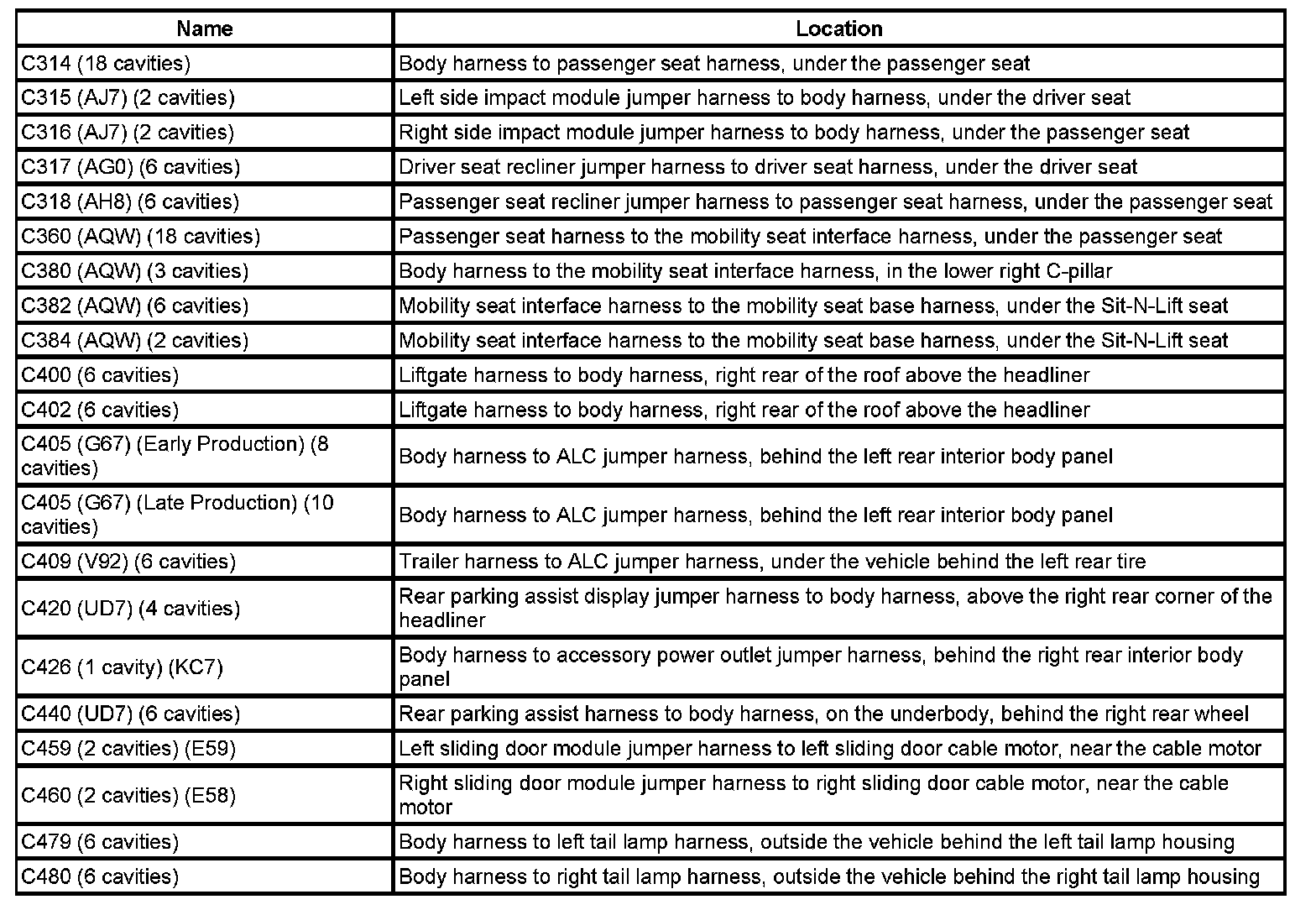

C314 - C480:
