Door Locks: Service and Repair

Lock Cylinder Replacement - Door

Removal Procedure


Important: Do not attempt repairs in order to correct lock cylinder discrepancies. Replace the lock cylinder.






1. Remove the front door window regulator module. Refer to Window Regulator Replacement - Front Door (Service and Repair) .

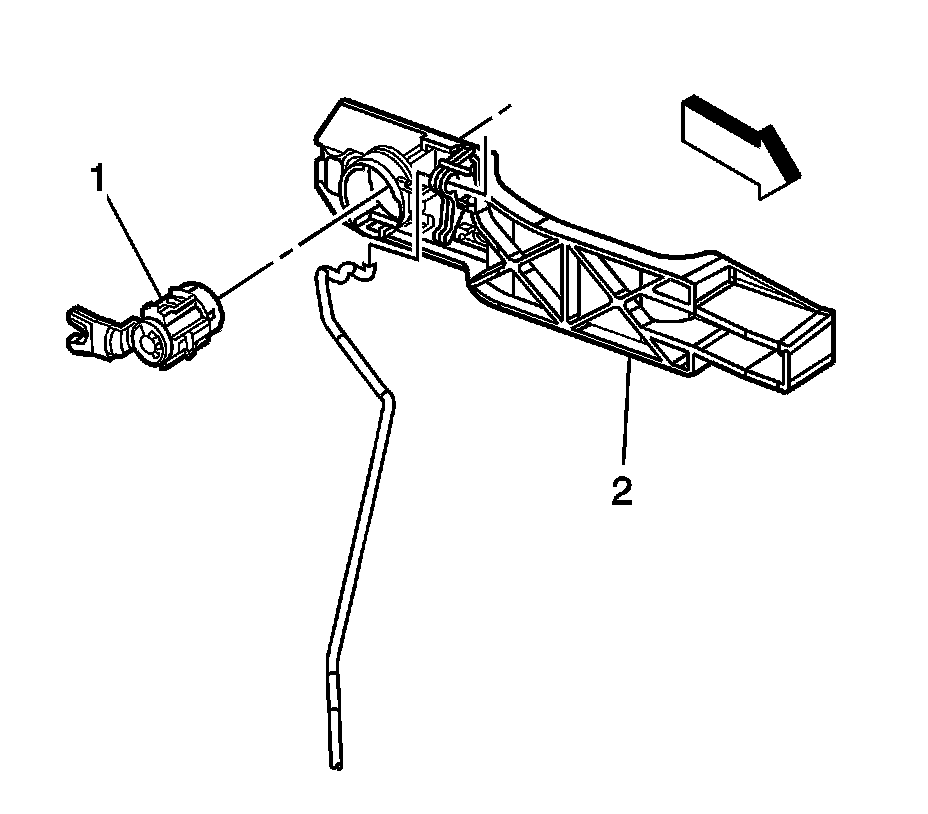

2. Remove the lock cylinder retainer clip (1).
3. Remove the lock cylinder from the outside door handle housing (2).



Installation Procedure





1. Install the lock cylinder to the outside door handle housing (2).
2. Install the lock cylinder retainer clip (1).
3. Install the front door window regulator module. Refer to Window Regulator Replacement - Front Door (Service and Repair) .
