Seal Locations

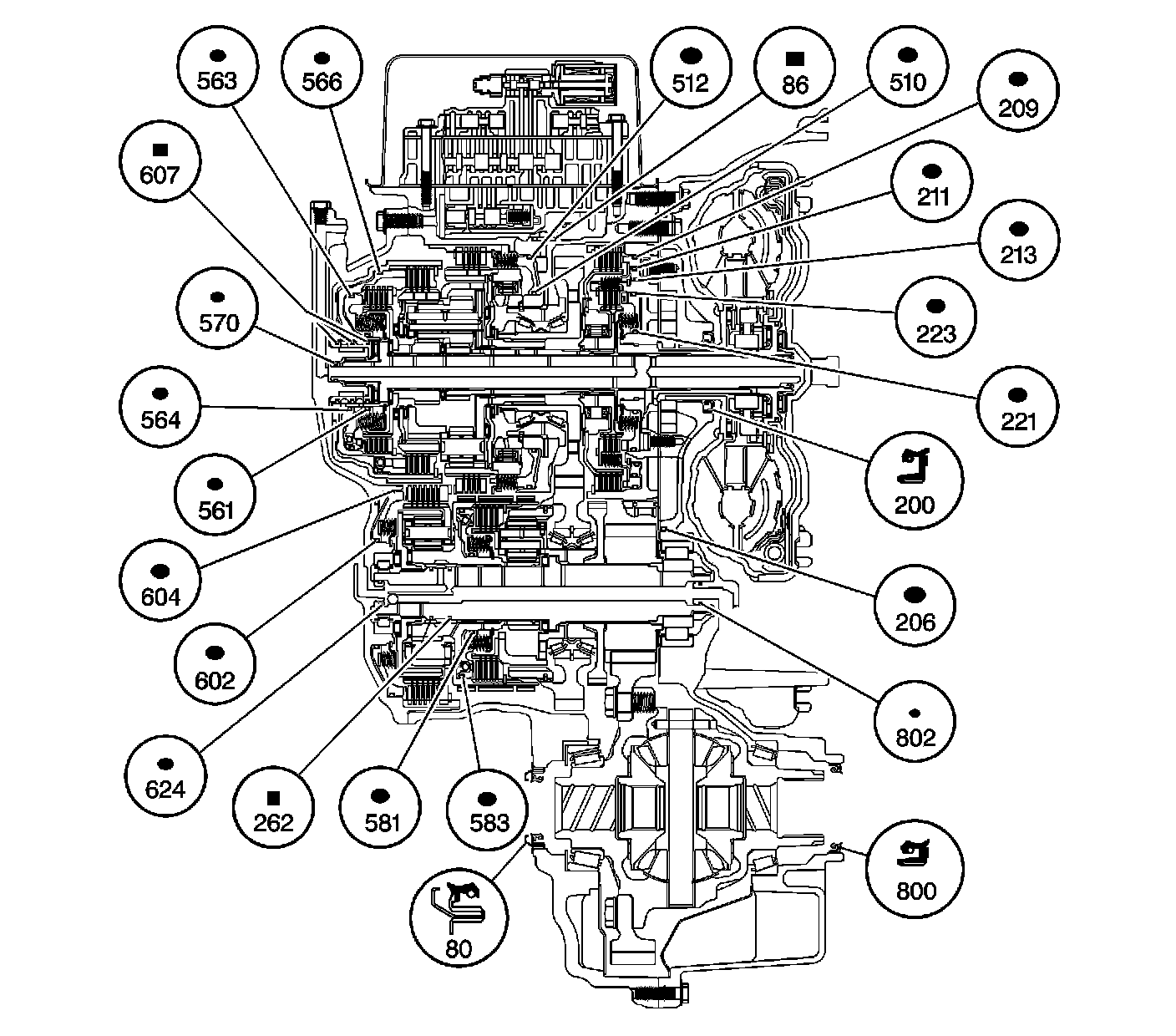

Component Location

Seal Locations:

80 - Front Wheel Drive Shaft Oil Seal
86 - Automatic Transmission Case Fluid Passage Seal (7)
200 - Automatic Transmission Fluid Pump Seal Assembly
206 - Automatic Transmission Fluid Pump O-ring Seal
209 - Second Clutch Piston Outer Seal
211 - Second Clutch Piston Sleeve Outer Seal
213 - Second Clutch Piston Sleeve Inner Seal
221 - Second Coast Clutch Piston Inner Seal
223 - Second Coast Clutch Piston Outer Seal
262 - 4-5 Clutch Housing Fluid Seal Ring (2)
510 - Low and Reverse Clutch Piston Inner Seal
512 - Low and Reverse Clutch Piston Outer Seal
561 - Direct Clutch Piston Inner Seal
563 - Direct Clutch Piston Outer Seal
564 - Forward Clutch Piston Inner Seal
566 - Forward Clutch Piston Outer Seal
570 - Input Shaft O-ring Seal
581 - 4-5 Clutch Piston Inner Seal
583 - 4-5 Clutch Piston Outer Seal
602 - 1-2 Reverse Clutch Piston Inner Seal
604 - 1-2 Reverse Clutch Piston Outer Seal
607 - Forward Clutch Housing Fluid Seal Ring (3)
624 - Front Differential Transfer Drive Gear Assembly Lube Seal Ring - Rear
800 - Front Differential Carrier Seal Assembly
802 - Front Differential Transfer Drive Gear Front Lube O-ring Seal
