Low Pressure Sensor / Switch: Service and Repair

AIR CONDITIONING (A/C) REFRIGERANT LOW TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left side insulator/closeout panel.
2. Disconnect the temperature sensor connector from the temperature sensor.

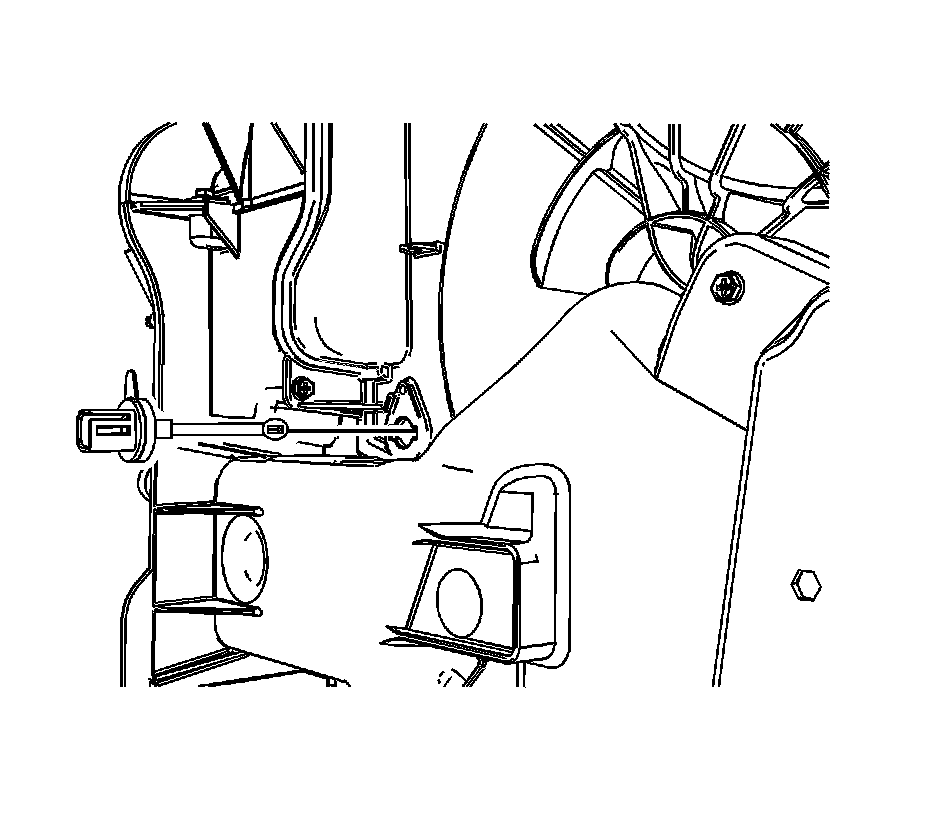

3. Twist the temperature sensor one quarter turn to disengage from the evaporator case assembly.
4. Remove the temperature sensor from the evaporator case assembly.

INSTALLATION PROCEDURE




1. Install the temperature sensor to the evaporator case assembly.
2. Twist the temperature sensor one quarter turn to engage to the evaporator case assembly.
3. Install the temperature sensor connector to the temperature sensor.
4. Install the left side insulator/closeout panel.
