Heater Core: Service and Repair

HEATER CORE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the HVAC module from the vehicle.
2. Remove the heater heater core cover screws from the HVAC module.
3. Remove the heater core cover from the HVAC module.

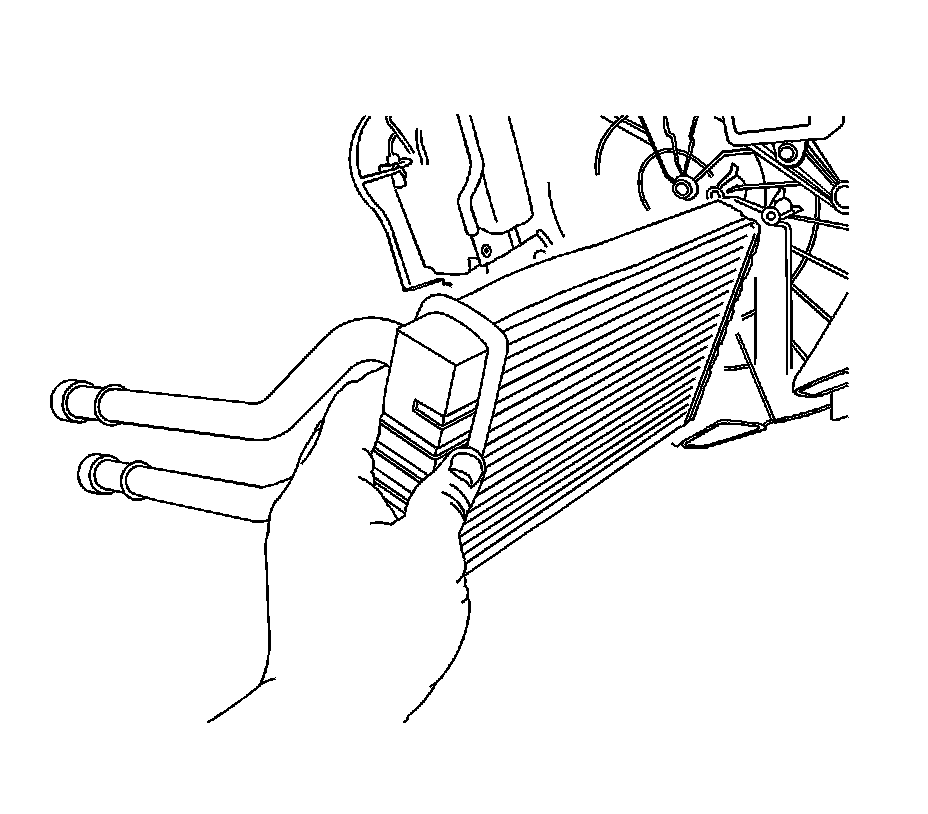

4. Remove the heater core from the HVAC module.

INSTALLATION PROCEDURE




1. Install the heater core to the HVAC module.




2. Install the heater core cover to the HVAC module.
3. Install the heater core cover screws to the HVAC module.

Tighten the screw to 1.5 N.m (13 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the HVAC module to the vehicle.
