Blower Case Assembly Replacement

BLOWER CASE ASSEMBLY REPLACEMENT

REMOVAL PROCEDURE
1. Remove the HVAC module assembly.
2. Remove the evaporator case assembly.
3. Remove the air inlet assembly.
4. Remove the HVAC module wire harness from the blower case assembly.




5. Remove the blower motor screws from the blower case assembly.
6. Remove the blower motor from the blower case assembly.




7. Remove the blower motor resistor screws from the blower case assembly.
8. Remove the blower motor resistor from the blower case assembly.

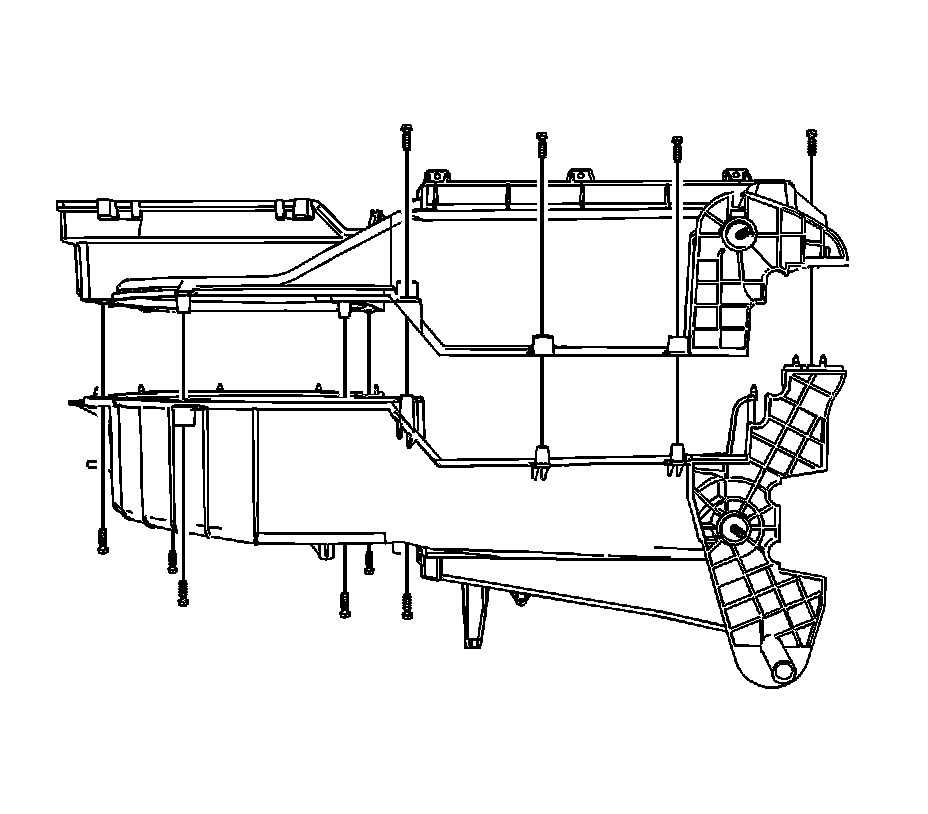

9. Remove the screws retaining the two halves of the blower case assembly.
10. Separate the two halves of the blower case assembly.
11. Remove the evaporator core from the blower case assembly.

INSTALLATION PROCEDURE




1. Install the evaporator core to the blower case assembly.
2. Assemble the two halves of the blower case assembly.
3. Install the screws to retain the two halves of the blower case assembly.

Tighten the screws to 1.5 N.m (13 lb in).

NOTE: Refer to Fastener Notice.




4. Install the blower motor resistor to the blower case assembly.
5. Install the blower motor resistor screws to the blower case assembly.

Tighten the screws to 1.5 N.m (13 lb in).




6. Install the blower motor to the blower case assembly.
7. Install the blower motor screws to the blower case assembly.

Tighten the screws to 1.5 N.m (13 lb in).

8. Install the HVAC module wire harness from the blower case assembly.
9. Install the air inlet assembly.
10. Install the evaporator case assembly.
11. Install the HVAC module.
