Automatic Transmission/Transaxle
>>
Fluid Pan, A/T
Fluid Pan, A/T
Fluid Pan

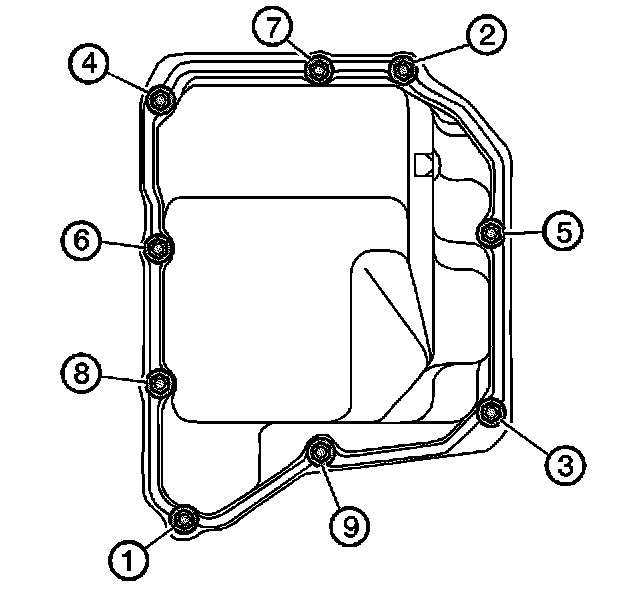

Tighten the control valve body cover bolts in the sequence shown.
^
Tighten the bolts to
13 Nm (115 lb in)
