Air Register: Service and Repair

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the instrument panel center upper cover.

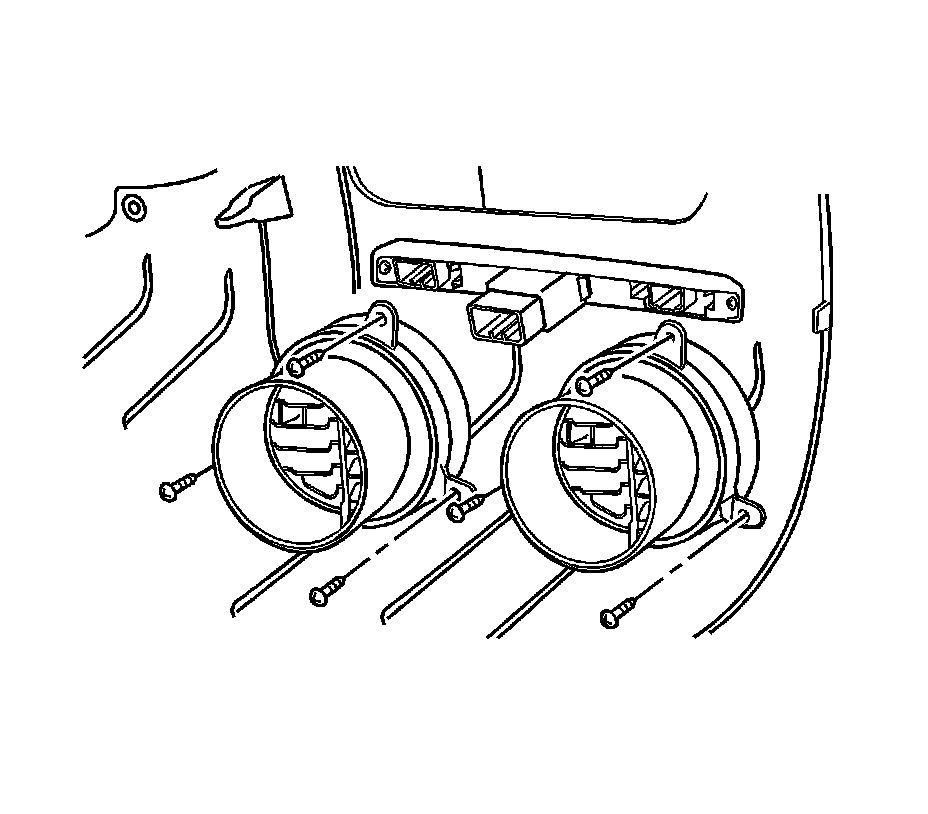

3. Remove the screws and the air deflectors.

INSTALLATION PROCEDURE




1. Install the air deflectors with the screws.

Tighten the air deflector screws to 2 N.m (18 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the instrument panel center upper cover.
3. Connect the negative battery cable.
