Rear Bumper: Service and Repair

Rear Bumper Extension Replacement

Removal Procedure




1. Apply tape to the corners of the adjacent surfaces.
2. Raise and support the vehicle. Refer to Vehicle Lifting.
3. Remove the rear bumper energy absorber.
4. Remove the rear bumper fascia.
5. Remove the push-in retainers from the center of the rear bumper extension lower.
6. Remove the bolts from around the inside edge rear bumper extension lower.

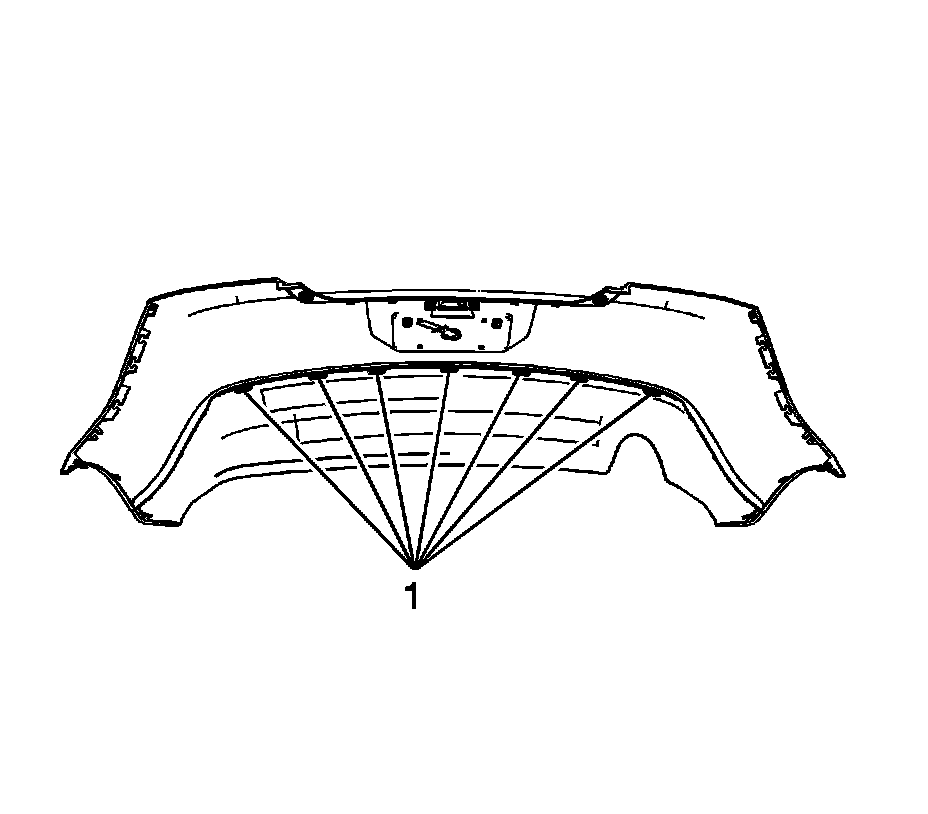

7. Remove the rear bumper extension lower by hand, releasing the integral snaps (1) from the backside of the rear fascia.

Installation Procedure




1. Install the rear bumper extension lower to the fascia with the 7 integral snaps (1).






Notice: Refer to Fastener Notice.

2. Install the 6 bolts around the lower inside edge of the rear bumper extension lower.

Tighten the bolts to 6 N.m (52 lb in).

3. Install the rear bumper energy absorber.
4. Install the rear bumper fascia.
6. Lower the vehicle. Refer to Vehicle Lifting.
