Removal and Replacement

IGNITION SWITCH LOCK CYLINDER REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the battery ground cable.

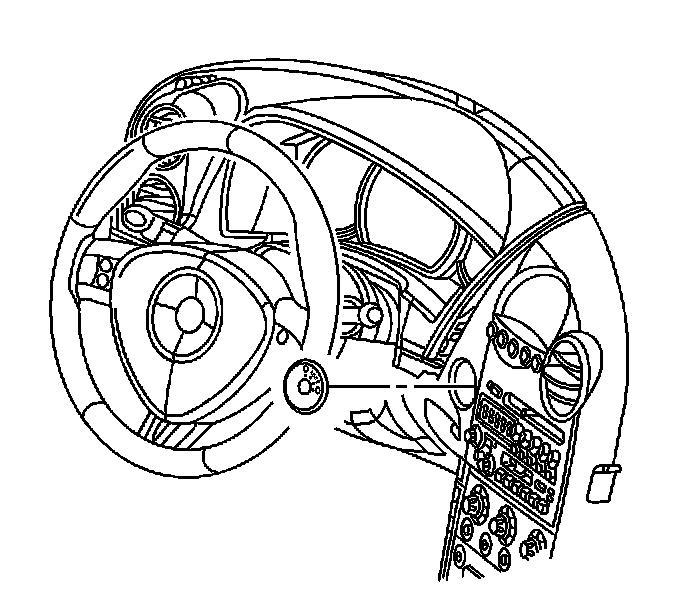

2. Use a plastic trim tool to remove the ignition switch bezel.




3. Remove the instrument panel (I/P) accessory trim plate.
4. Remove the left I/P insulator.
5. Remove the opening filler panel from the I/P steering column.
6. Remove the I/P driver knee bolster.
7. Remove the ignition switch bolts.




8. Lower the ignition switch away from the I/P trim pad.
9. Insert the key into the ignition lock cylinder. Turn the key to the ON/RUN position.

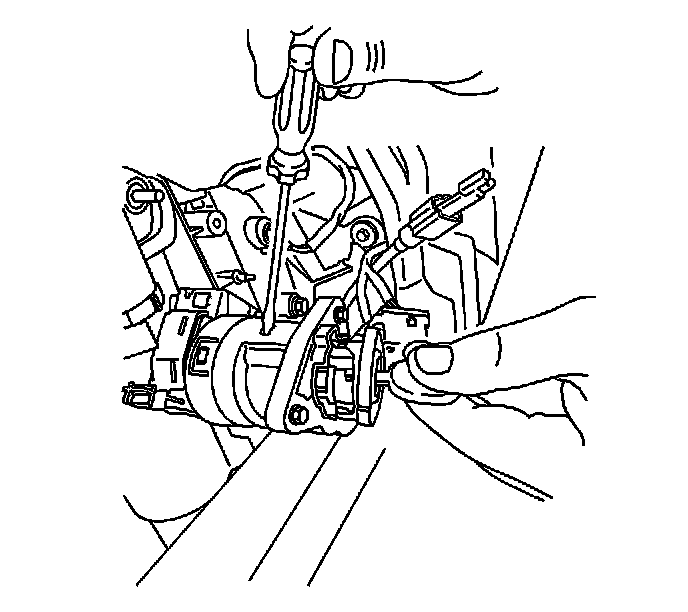

10. Depress and hold the detent on the bottom of the ignition switch in order to release the ignition lock cylinder. Remove the ignition lock cylinder with the key.
11. Remove the key from the lock cylinder.

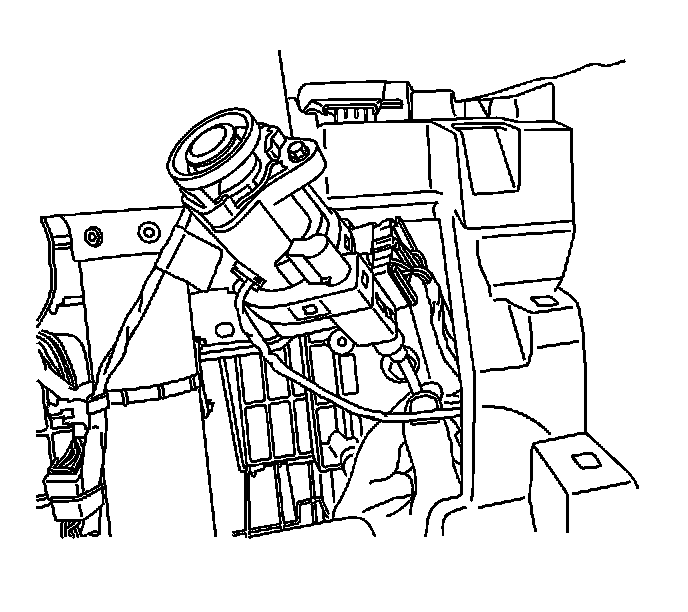

12. Disengage the theft deterrent reader/exciter module retainers (1,2).Remove the theft deterrent reader/exciter module (3) from the lock cylinder housing.
13. Remove the lock cylinder.
14. If the cylinder does not rotate, follow the procedure in the ignition switch replacement.

INSTALLATION PROCEDURE




1. Code the ignition lock cylinder , if necessary. Refer to Key and Lock Cylinder Coding.
2. Slide the theft deterrent reader/exciter module (3) onto the ignition lock cylinder housing. Verify that the retainers (1,2) are engaged.
3. Insert the key to the lock cylinder.

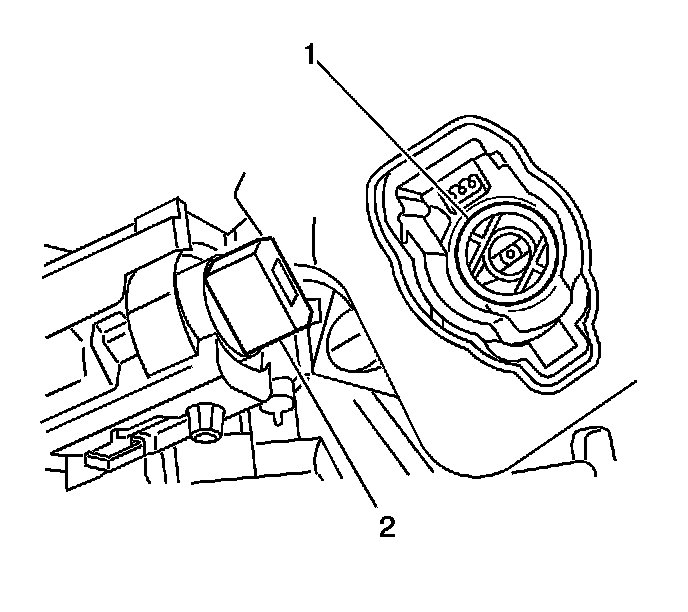

4. Turn the key to the ON/RUN position. Install the ignition lock cylinder into the ignition switch.If you turned the key slightly while removing the lock cylinder, you may have to align the white ignition switch rotor (1) with the lock cylinder (2). You can rotate the switch rotor with your finger.
5. Remove the key.
6. Position the ignition switch to the I/P trim pad.





7. NOTE: Refer to Fastener Notice.

Install the ignition switch bolts.

Tighten the bolts to 10 N.m (89 lb in).
8. Install the I/P driver knee bolster.
9. Install the I/P steering column opening filler panel.
10. Install the left I/P insulator.
11. Install the I/P accessory trim plate.




12. Install the ignition switch bezel.
13. Connect the battery ground cable.
