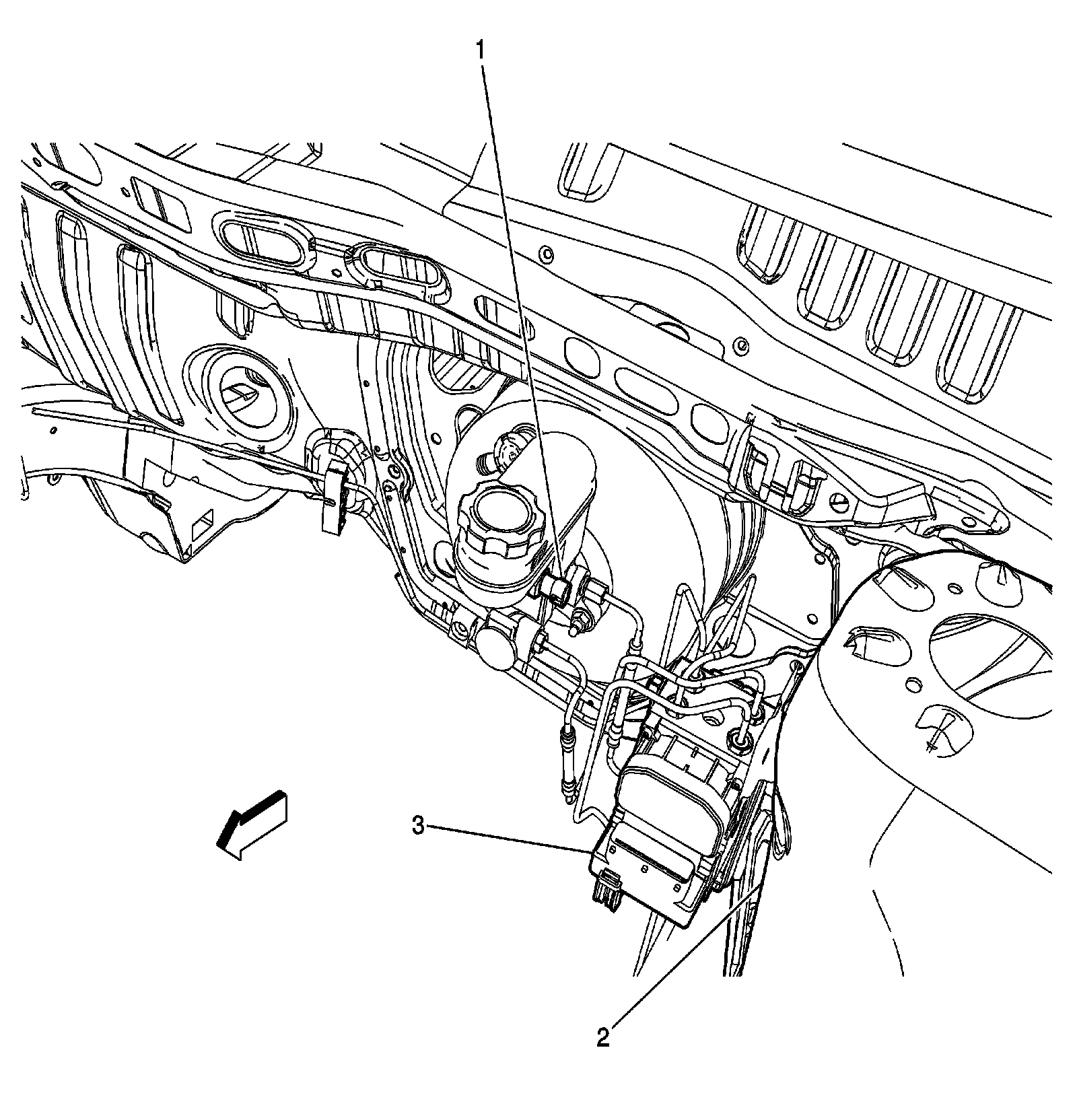

Brake Fluid Level Sensor/Switch: Locations

Near the Brake Booster

1 - Brake Fluid Level Switch
2 - LF Strut Tower
3 - Electronic Brake Control Module (EBCM)
