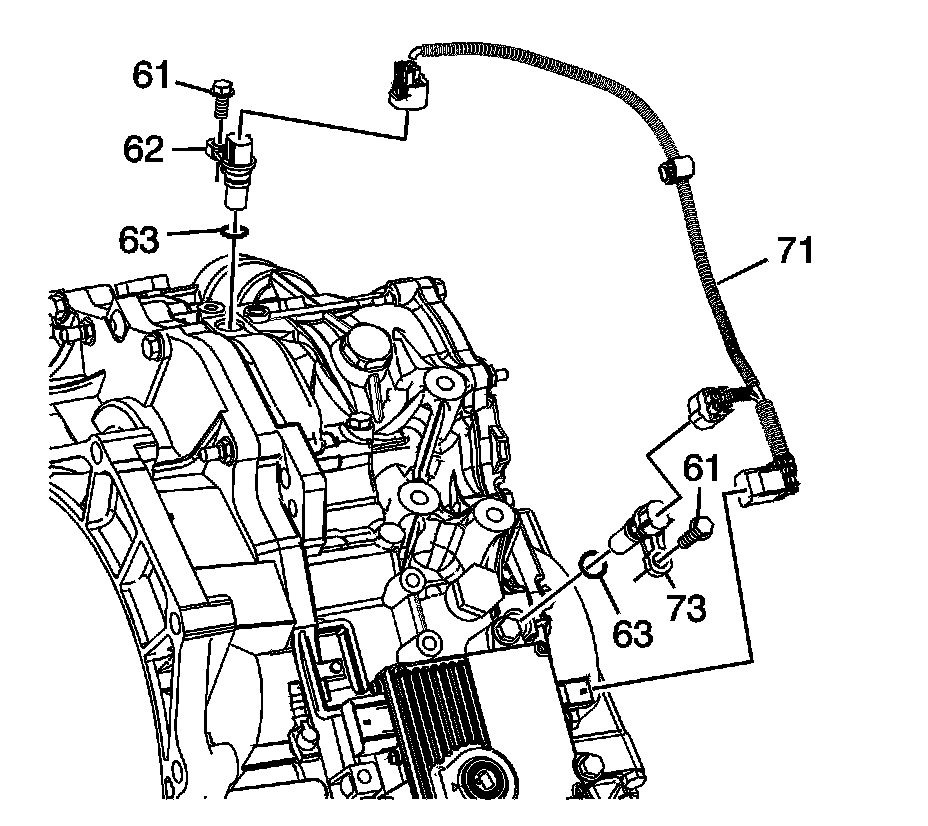

Input and Output Speed Sensor Installation

Input and Output Speed Sensor Installation





Notice: Use care when installing the speed sensors or damage may occur to the speed sensors or the transaxle case.

1. Install NEW speed sensor O-rings (63).
2. Install the output speed sensor (62) and the input speed sensor (73).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the M6 x 1.0 x 16 mm speed sensor bolts (61).

Tighten the speed sensor bolts (61) to 5 N.m (44 lb in).

4. Connect the input and output speed sensor harness assembly (71) to the speed sensors and the TCM.
