Torque Converter Assembly Installation

Torque Converter Assembly Installation

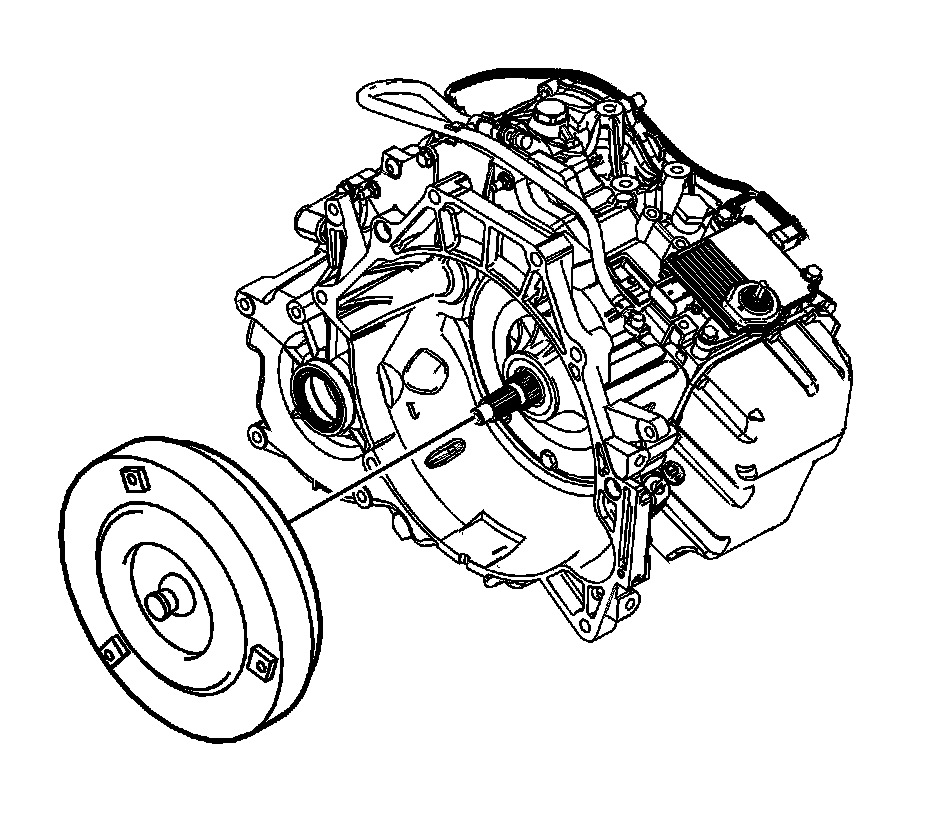

1. Install the torque converter.

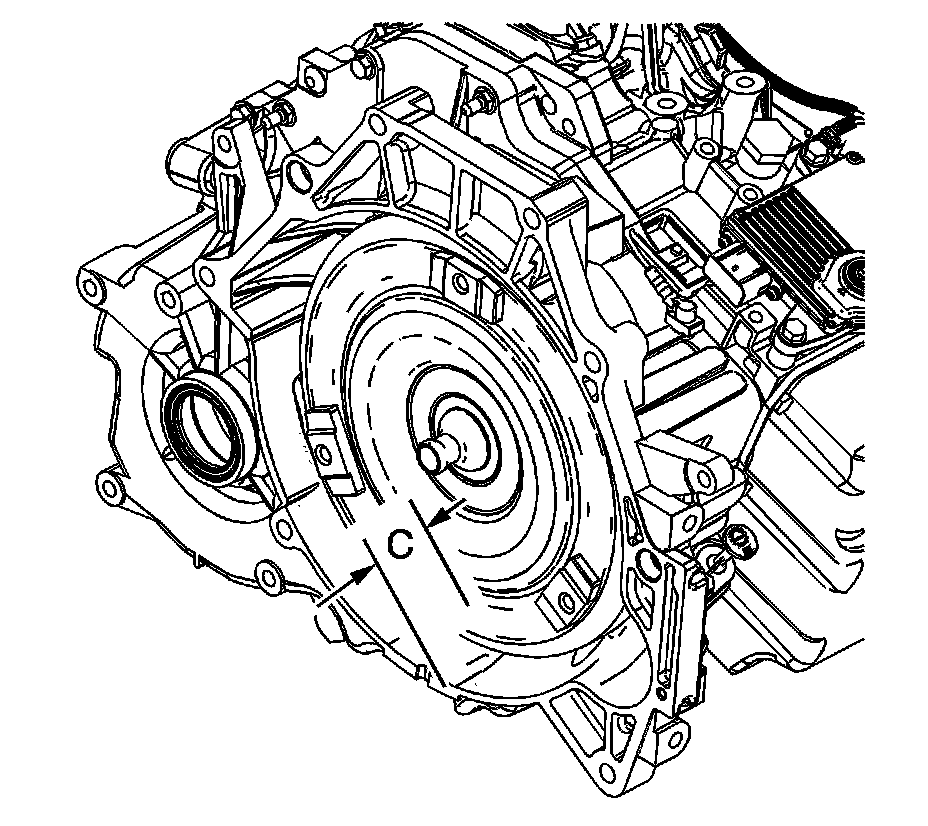

2. Measure dimension C.
3. If dimension C is not within specifications, rotate the torque converter to index it to the pump.

Dimension C should be 11.35 mm (0.447 in).
