Transaxle Brace Replacement

Transaxle Brace Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting

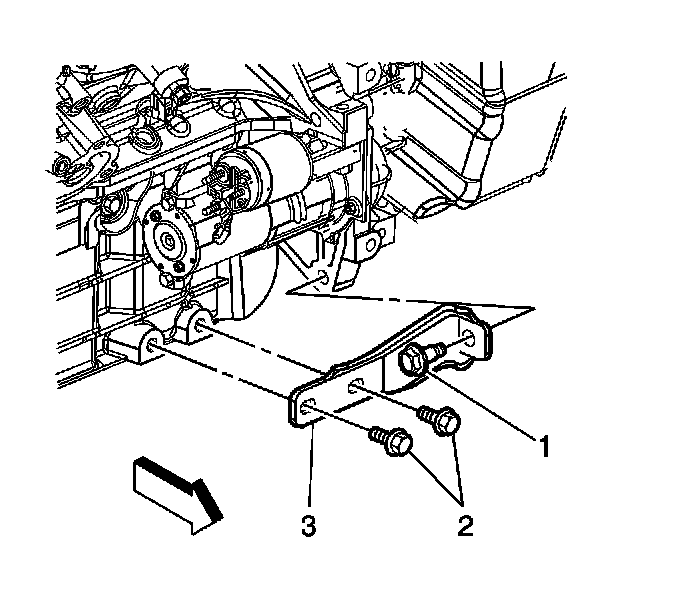

2. Remove the transaxle brace to engine oil pan bolts (2).
3. Remove the transaxle brace to transaxle bolt (1).
4. Remove the transaxle brace (3).

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the transaxle brace (3).
2. Install the transaxle brace bolts (1, 2).

Tighten the bolts to 50 N.m (37 lb ft).

3. Lower the vehicle.
