Seat Back Center Pivot Replacement - Rear Folding

Seat Back Center Pivot Replacement - Rear Folding

Removal Procedure




1. Remove the rear seat back cushion.
2. Remove the following components from the vehicle:

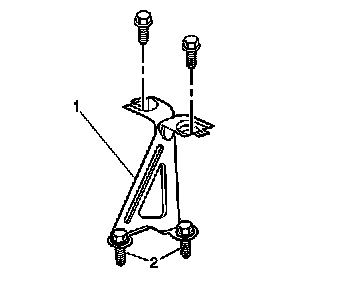

* The 2 bolts (2) that retain the rear seat back cushion center pivot support (1)
* The rear seat back cushion center pivot support (1)

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the rear seat back cushion center pivot support (1) to the vehicle. Secure the support with the 2 bolts (2).

Tighten the center pivot support bolts to 18 N.m (13 lb in).

2. Install the rear seat back cushion.
