AC/DC Power Outlet Control Module Replacement

AC/DC POWER OUTLET CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.
2. Move the driver seat to the full rearward position.

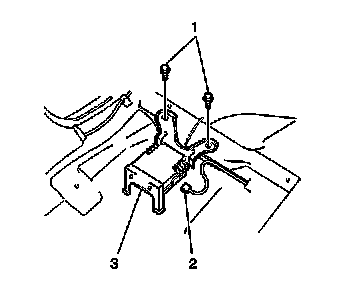

3. Remove the 2 bolts (1).
4. Fold the floor carpet to the inside.
5. Disconnect the electrical connector (2).
6. Remove the accessory AC/DC power control module (3) from the vehicle.

INSTALLATION PROCEDURE

1. NOTE: Refer to Fastener Note.




Install the accessory AC/DC power control module (3) to the vehicle. Secure the module (3) with the 2 bolts (1).

Tighten the power control module bolts to 7.0 N.m (62 lb in).

2. Fold the floor carpet to the inside.
3. Connect the electrical connector (2).
4. Move the driver seat to it's original position.
5. Connect the negative battery cable.
