HVAC - Automatic
HVAC Schematics

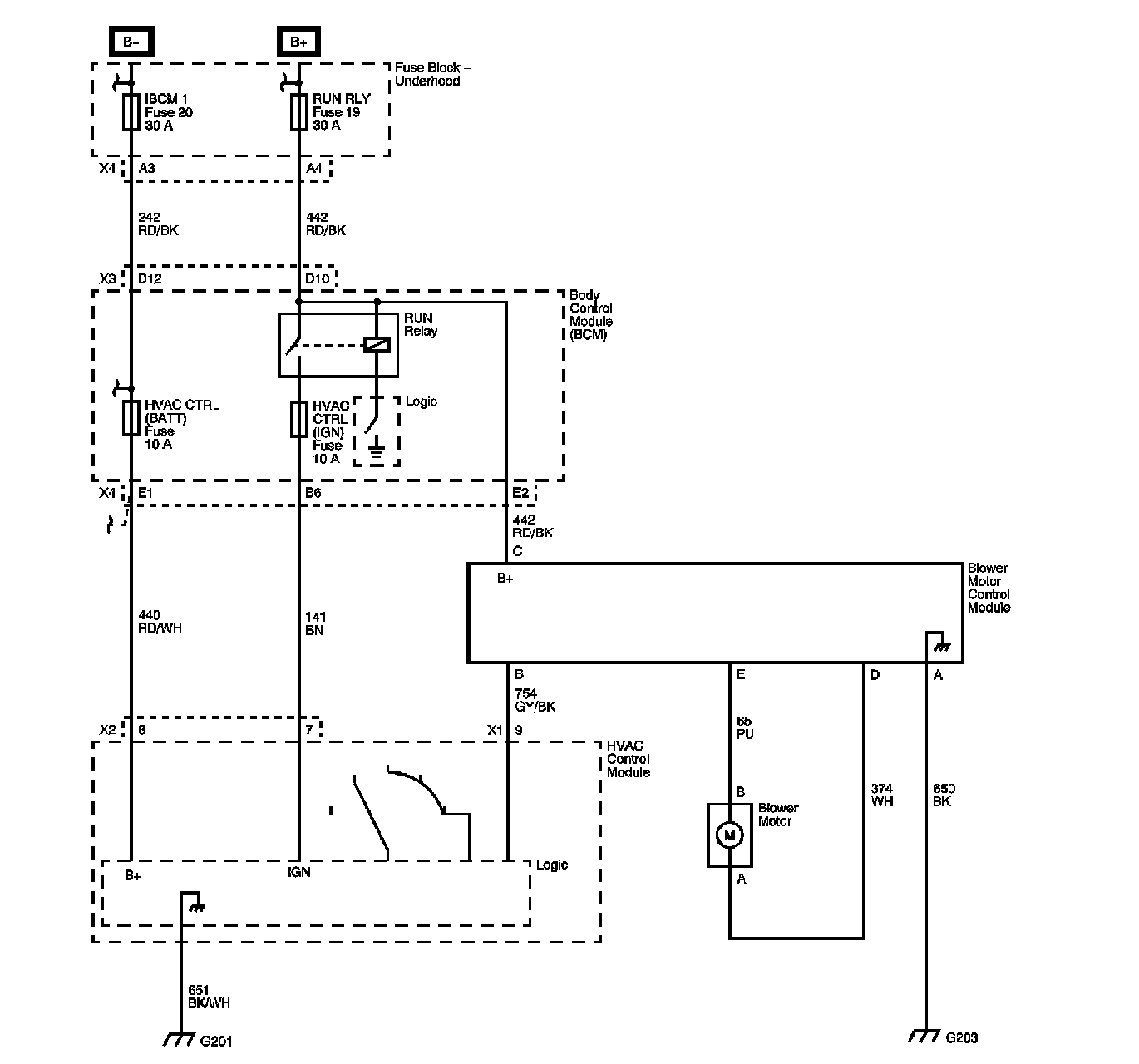

Blower Motor - Controls, Ground and Power

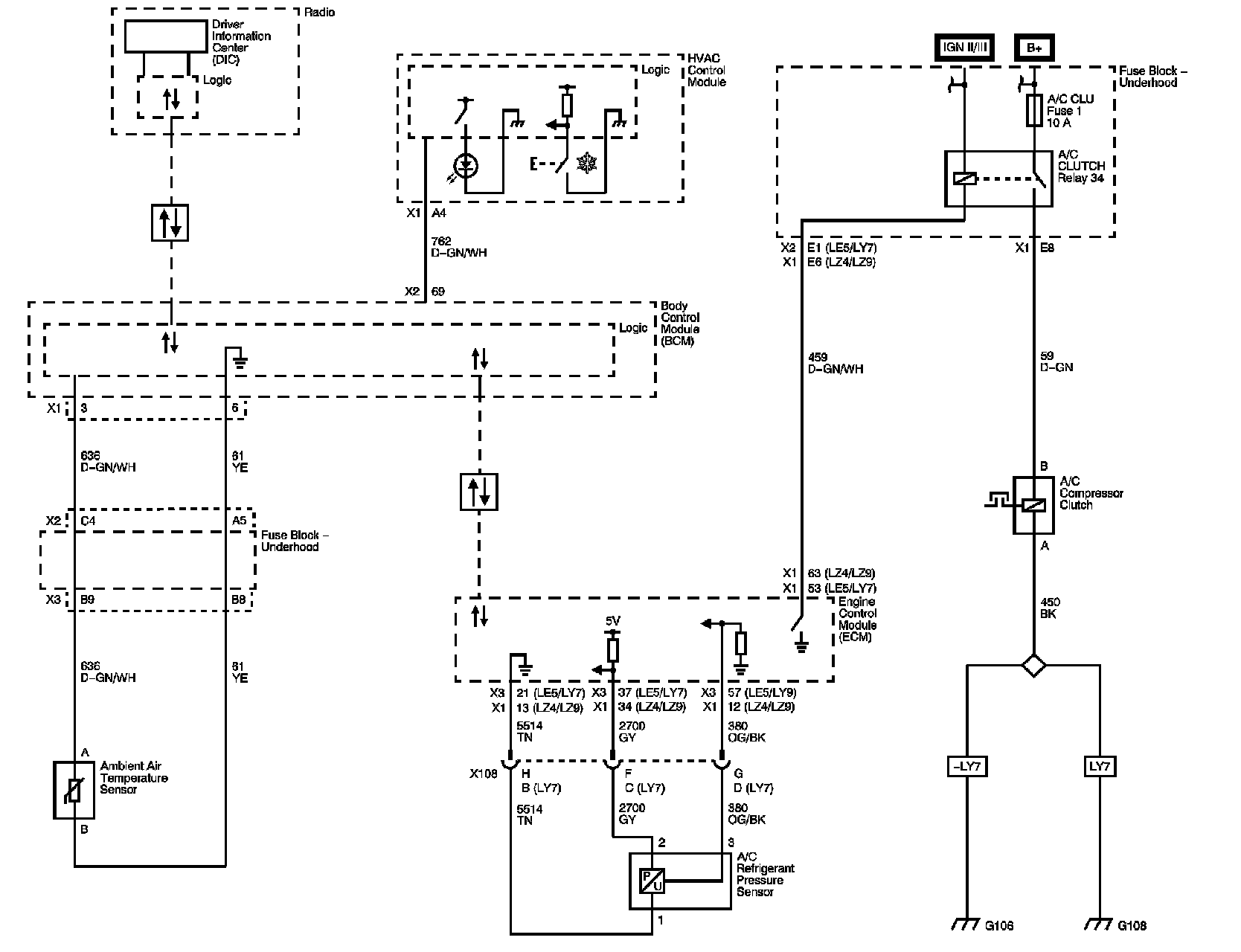

Ambient Air Temperature Sensor and Compressor Controls

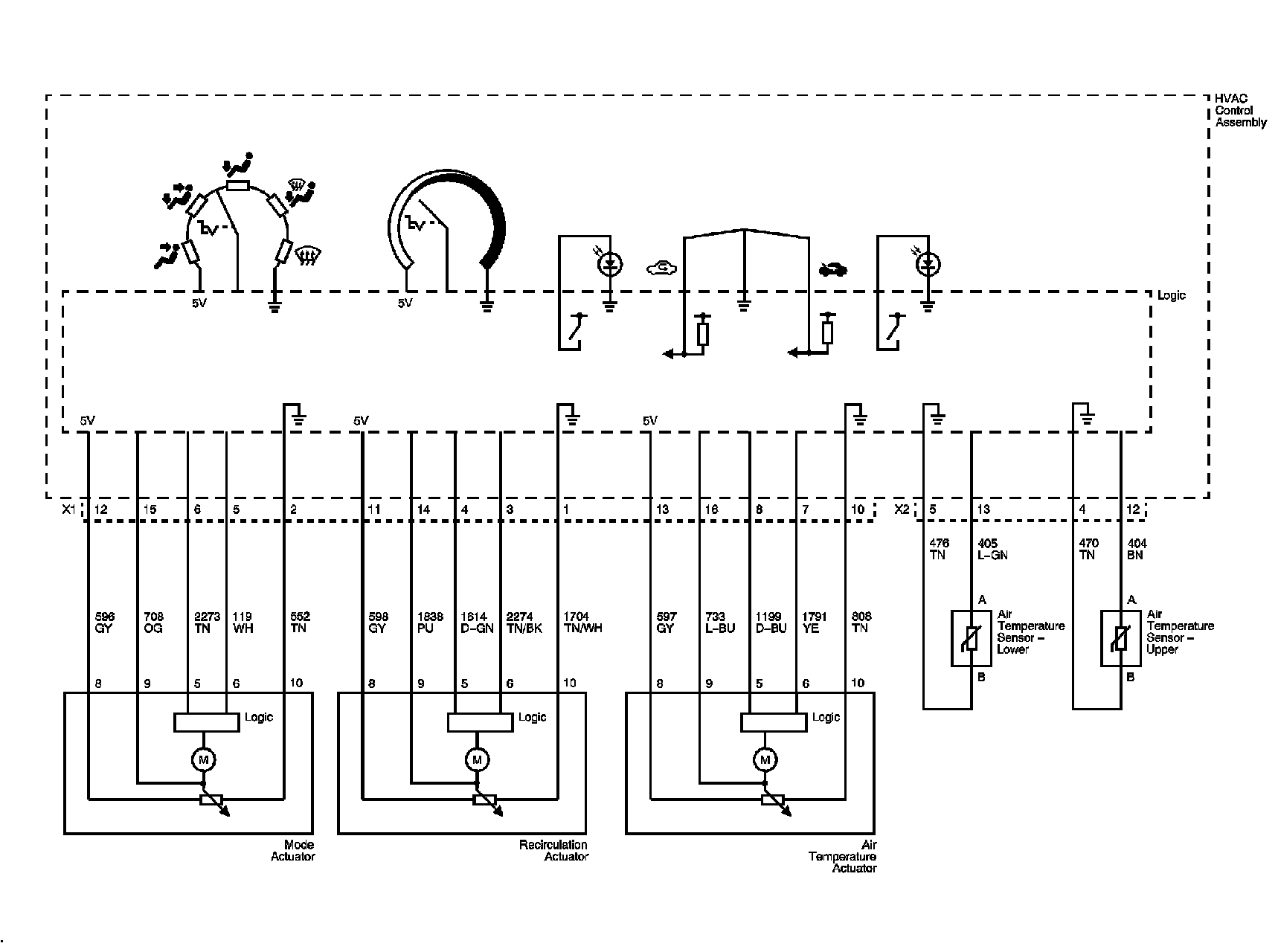

Air Temperature and Mode Controls
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
