Engine Control Module
Component Connector End Views

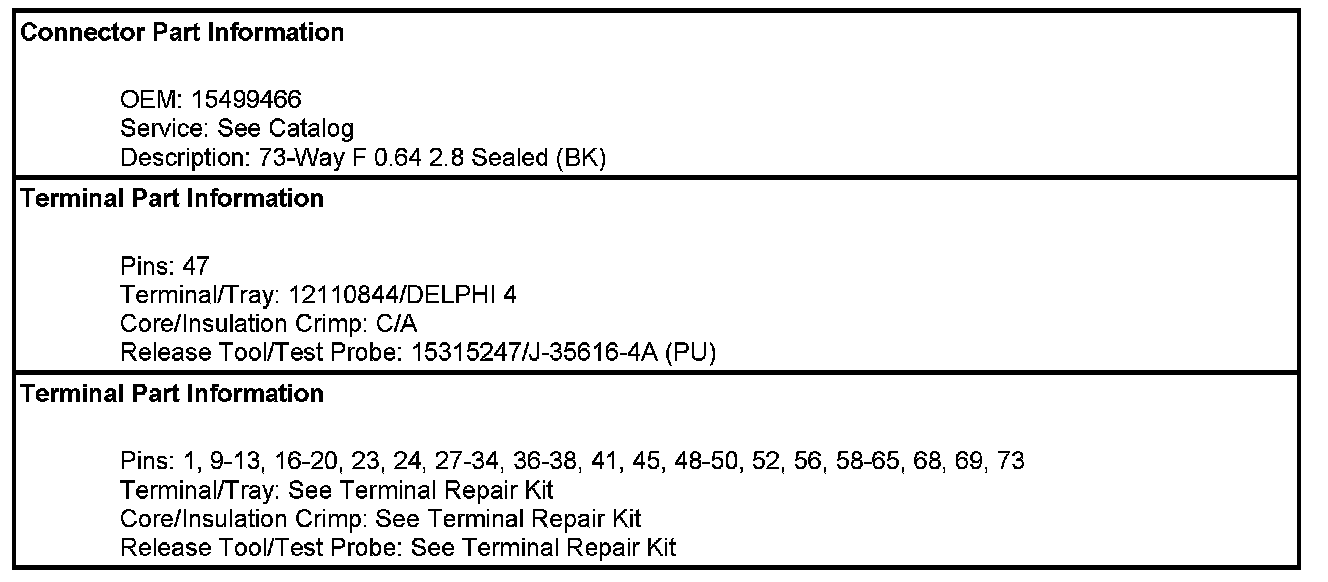

Engine Control Module (ECM) X1 (LZ9)

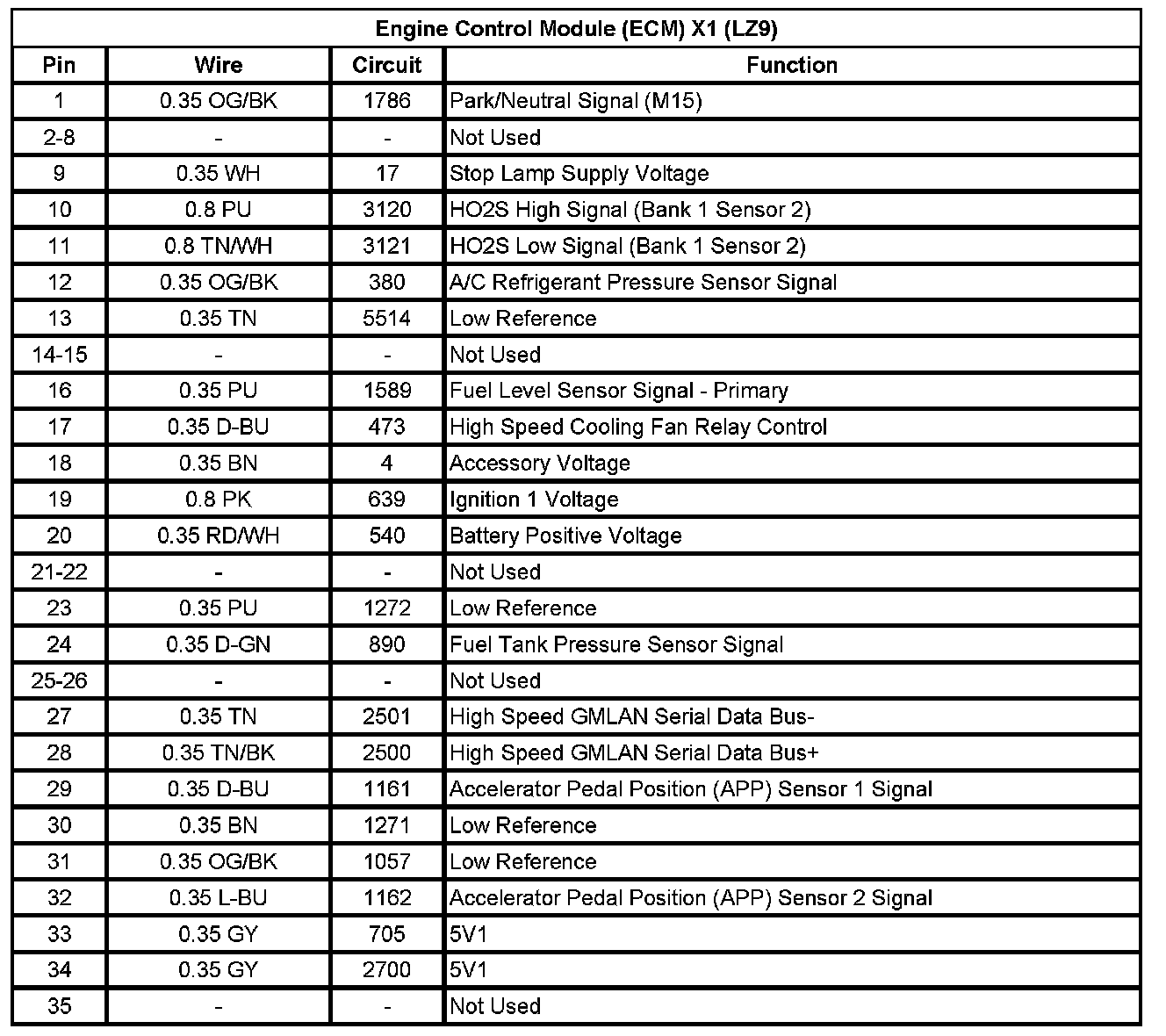

Engine Control Module (ECM) X1 (LZ9) (Pin 1 To 35):

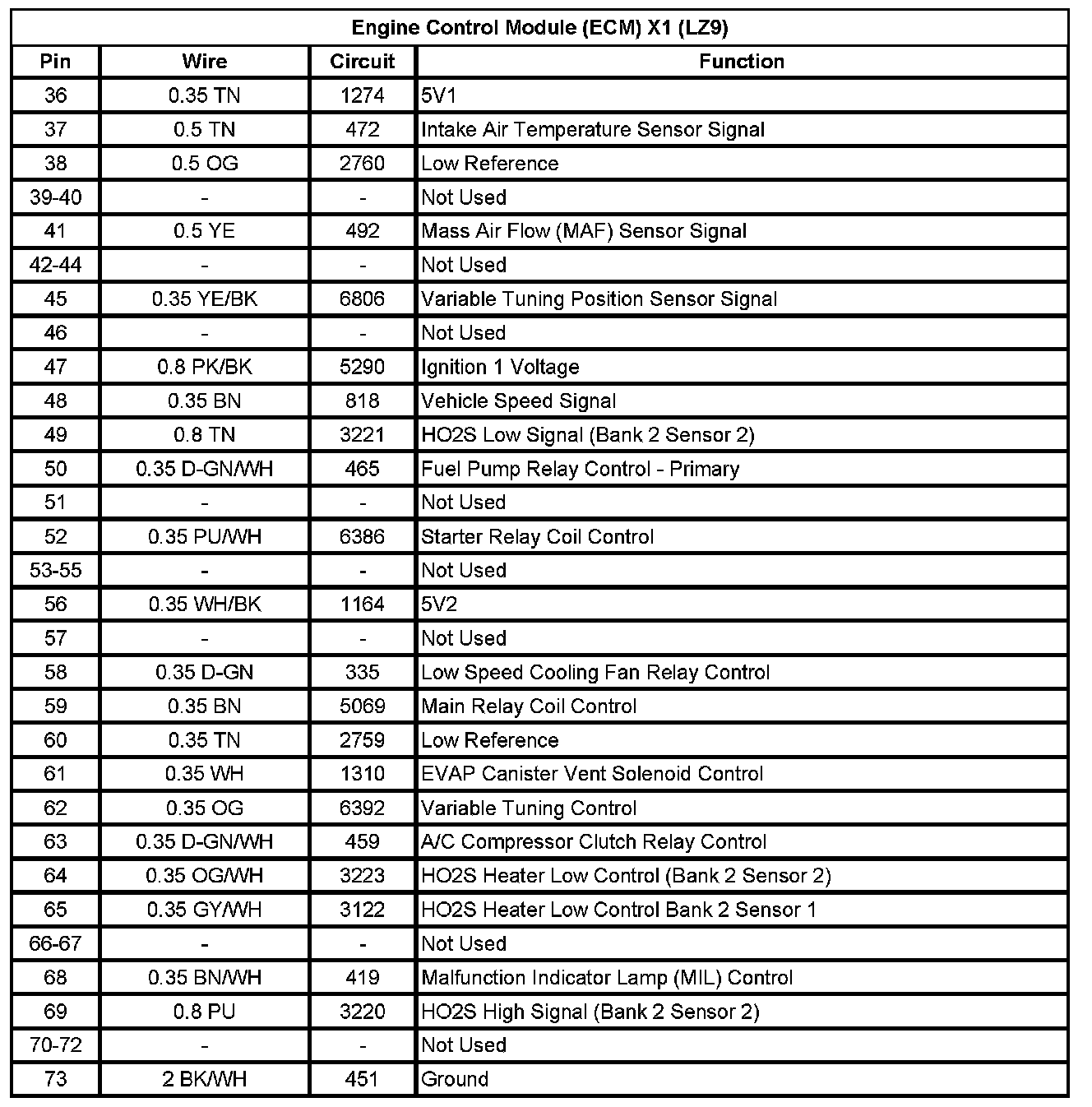

Engine Control Module (ECM) X1 (LZ9) (Pin 36 To 73):

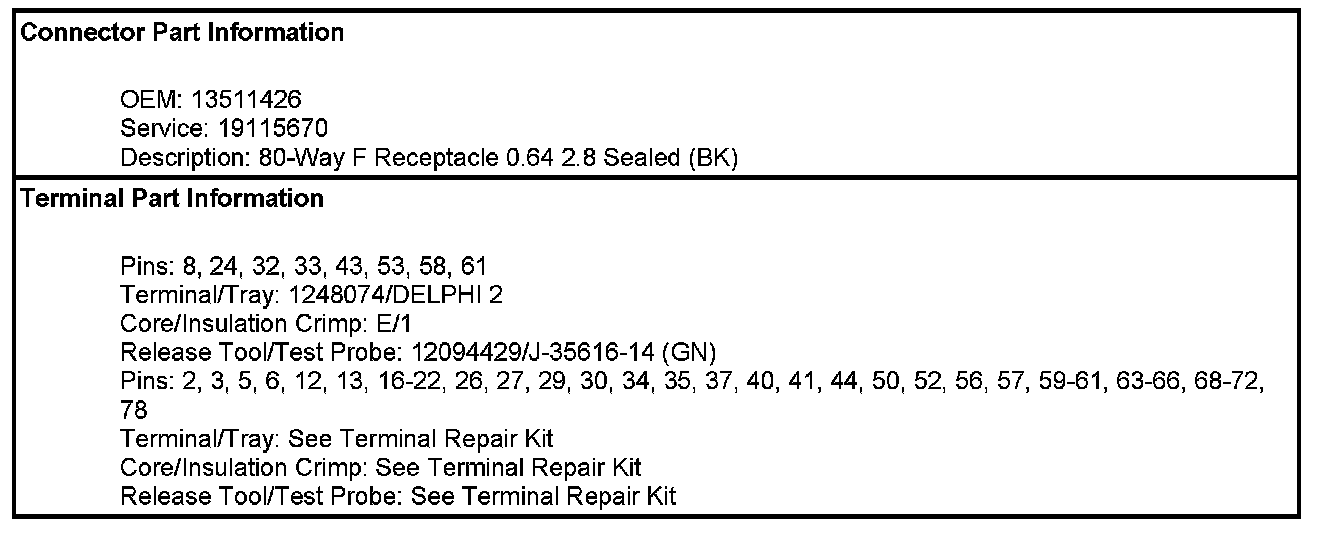

Engine Control Module (ECM) X2 (LZ9)

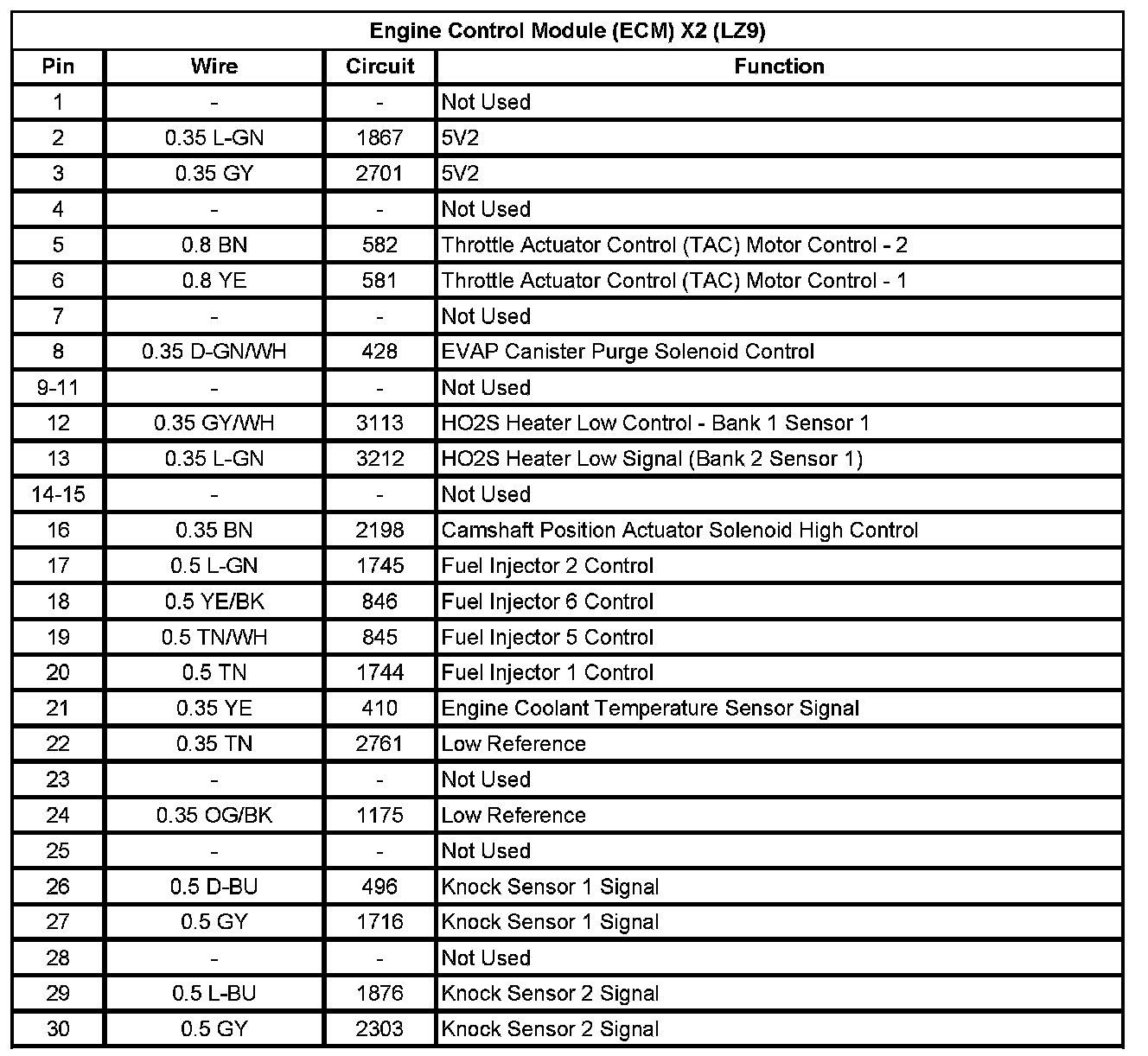

Engine Control Module (ECM) X2 (LZ9) (Pin 1 To 30):

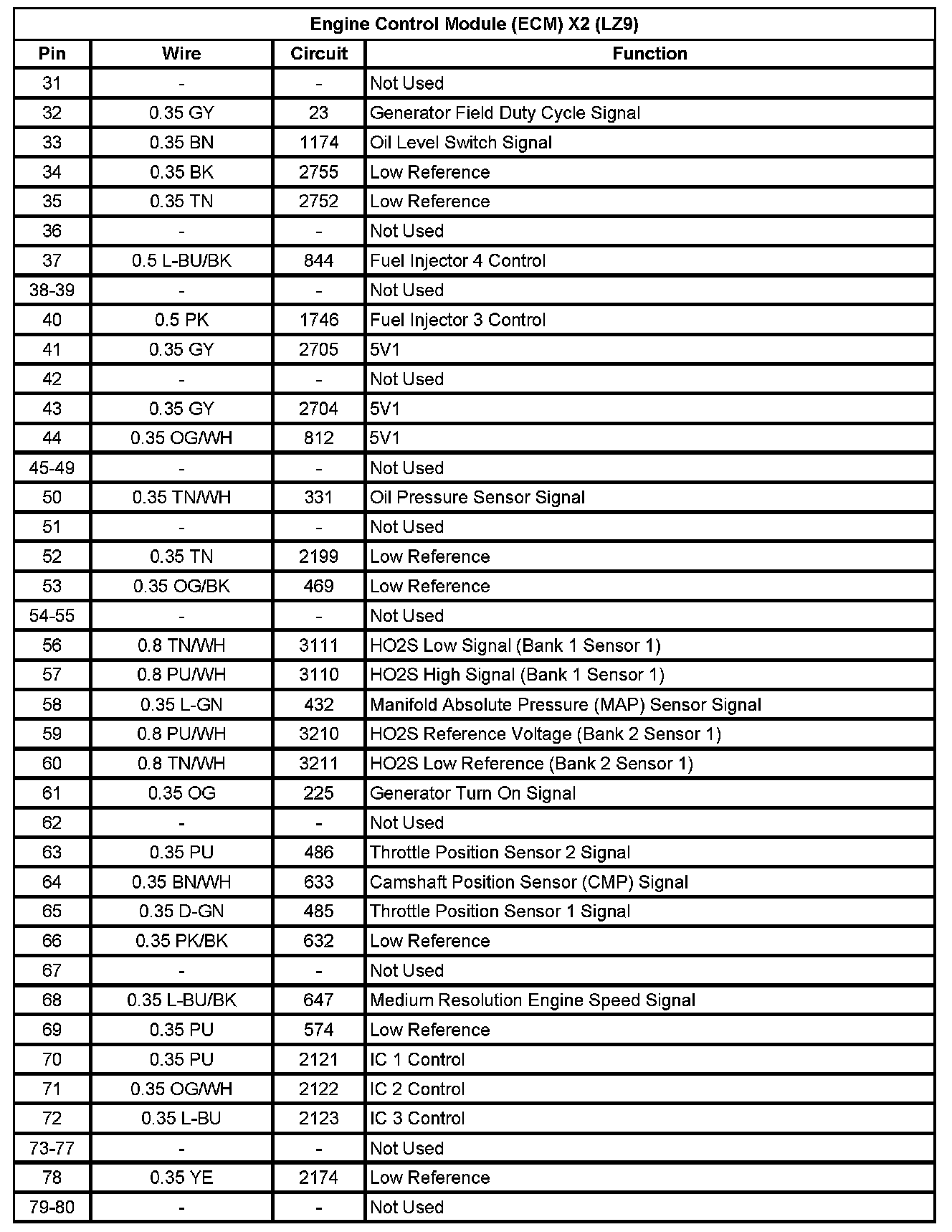

Engine Control Module (ECM) X2 (LZ9) (Pin 31 To 80):
