Trunk / Liftgate Switch: Diagrams




Component Connector End Views


Rear Compartment Lid Release Switch - Left Front Hinge (Convertible)

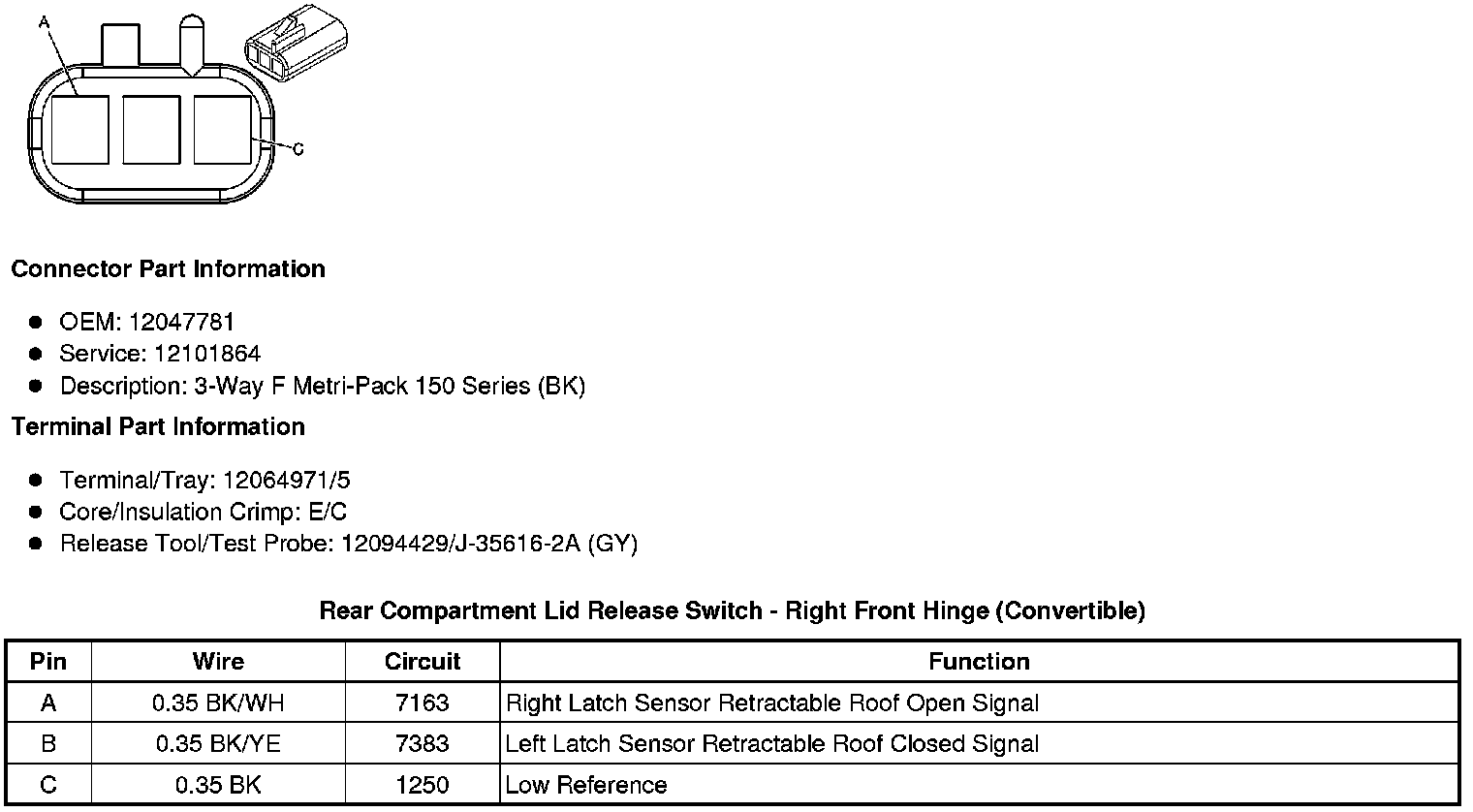

Rear Compartment Lid Release Switch - Right Front Hinge (Convertible)






Rear Compartment Lid Release Switch - Interior

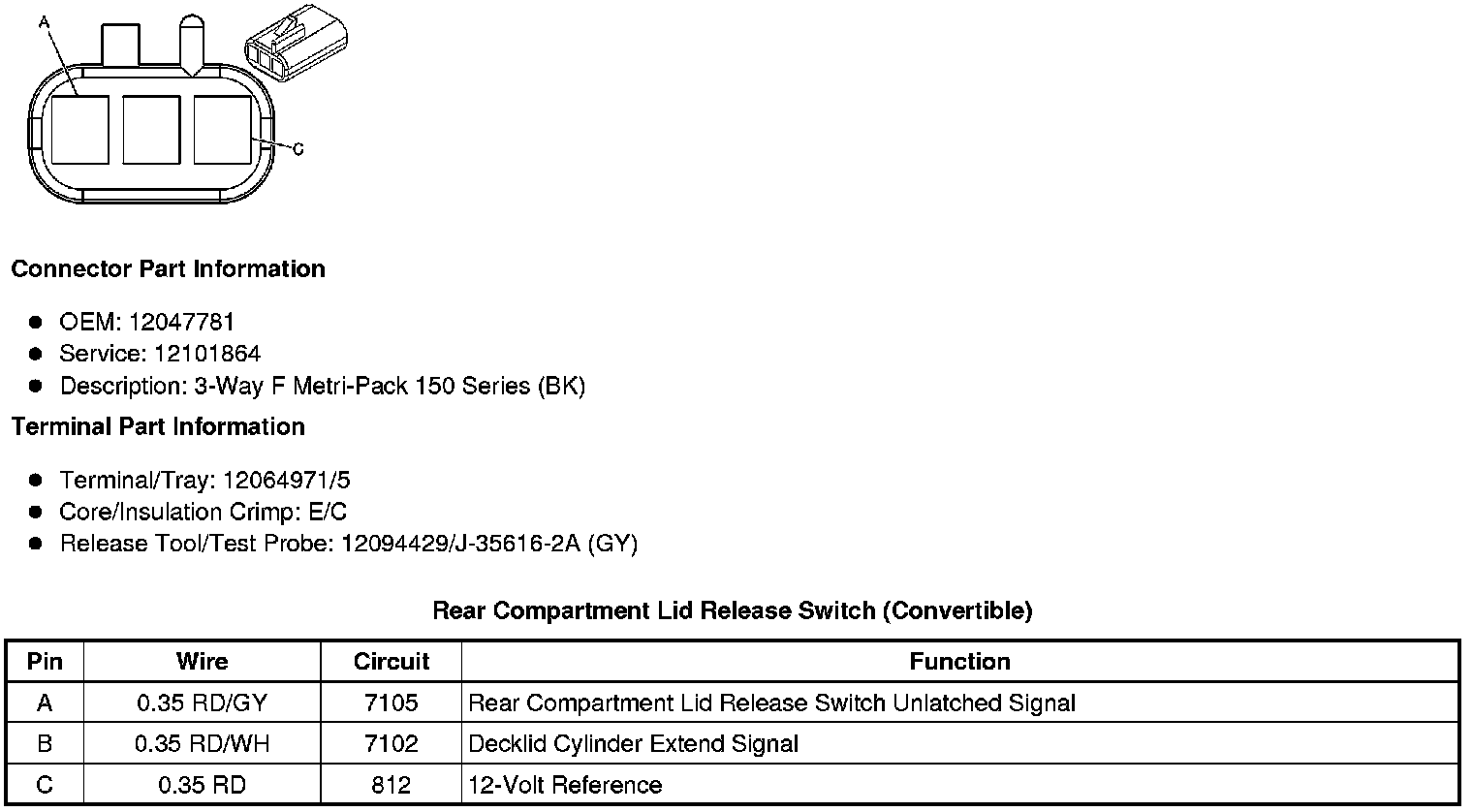

Rear Compartment Lid Release Switch (Convertible)






Rear Compartment Lid Pin Retainer Switch - Left Front Hinge (Convertible)

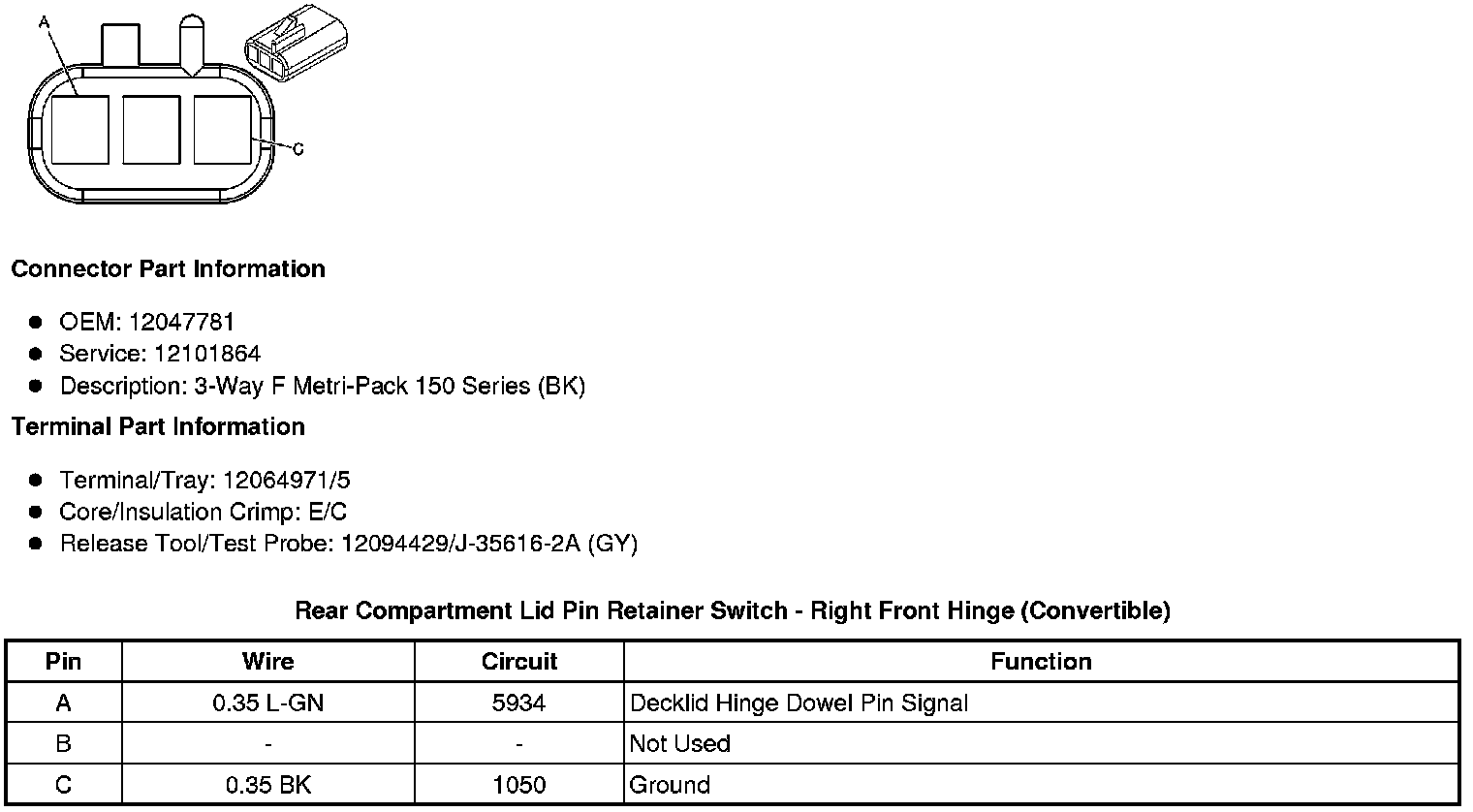

Rear Compartment Lid Pin Retainer Switch - Right Front Hinge (Convertible)
