Lower Left Side of Instrument Panel

Harness Routing Views

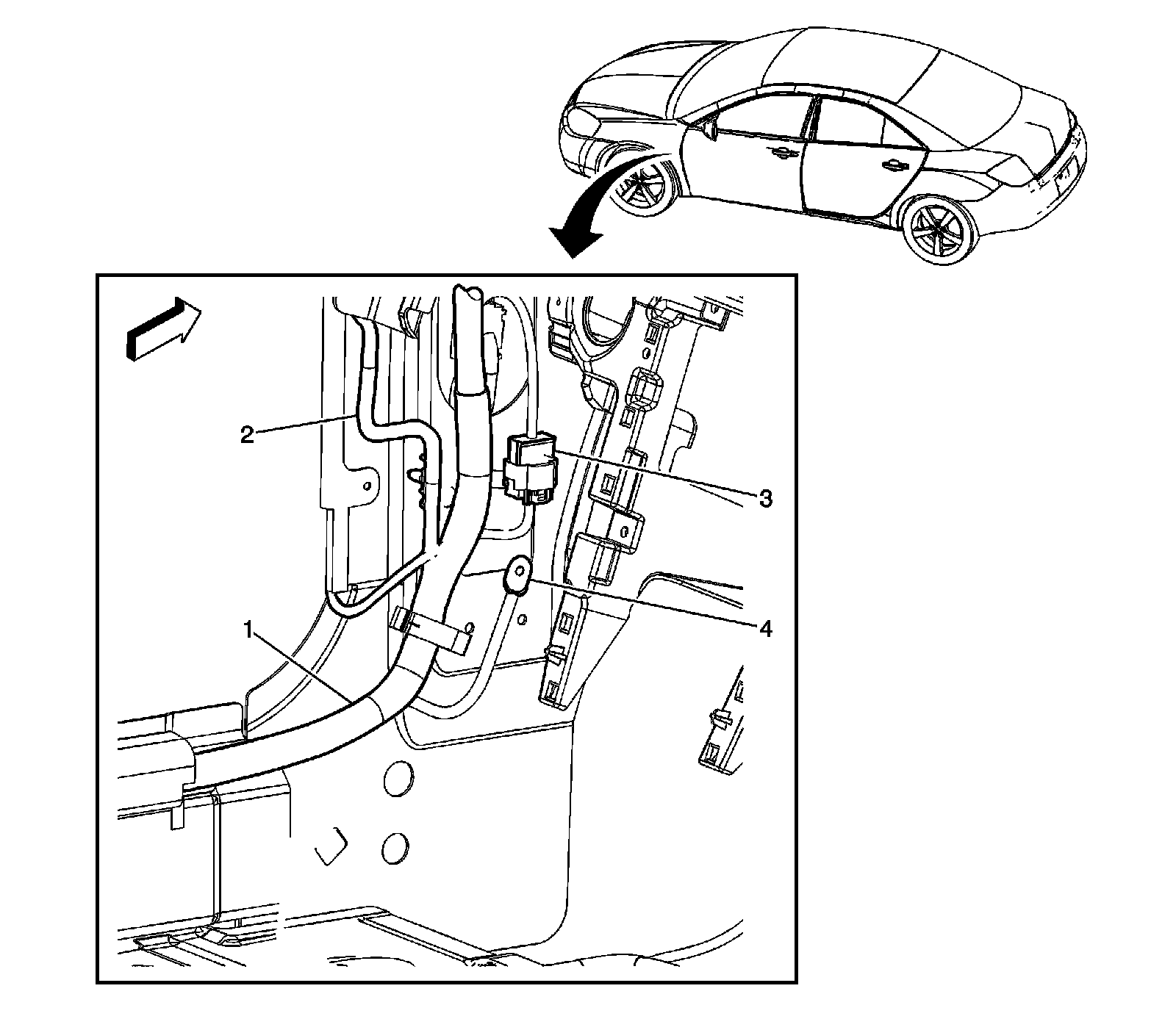

Lower Left Side of Instrument Panel

1 - Body Harness
2 - Headliner Harness (Convertible)
3 - X200 (Convertible)
4 - G303
