Pontiac
>>
2009
>>
G6 L4-2.4L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Power Distribution Diagram 8
Power Distribution Diagram 8
Power Distribution Schematics

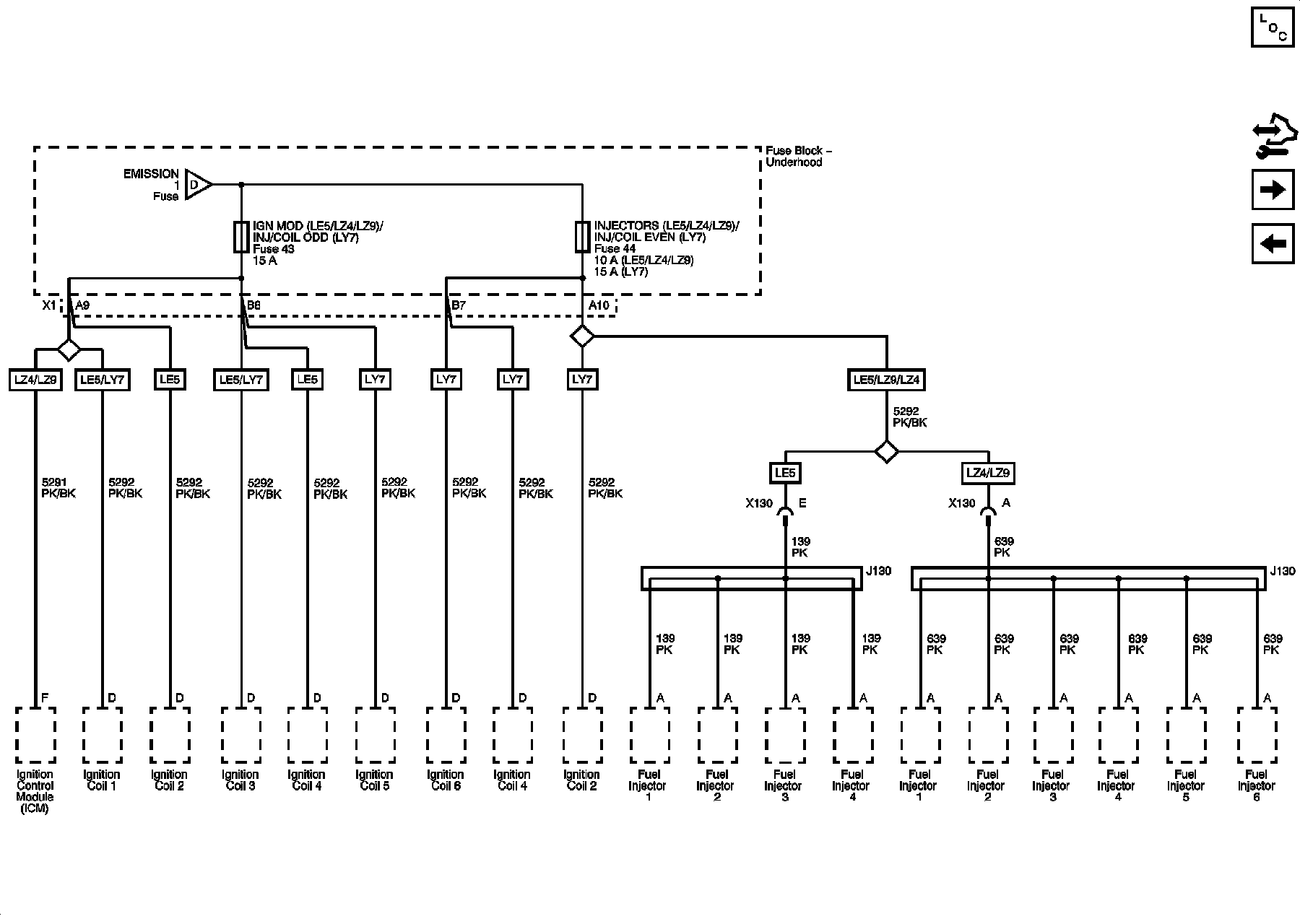

Underhood Fuse Block, IGN MOD (LE5/LZ4/LZ9), INJ/COIL ODD (LY7), INJECTORS (LE5/LZ4/LZ9), and INJ/COIL EVEN (LY7) Fuses
