Temperature Valve Actuator Replacement - Right Side (Dual Zone)

Temperature Valve Actuator Replacement - Right Side (Dual Zone)

Removal Procedure

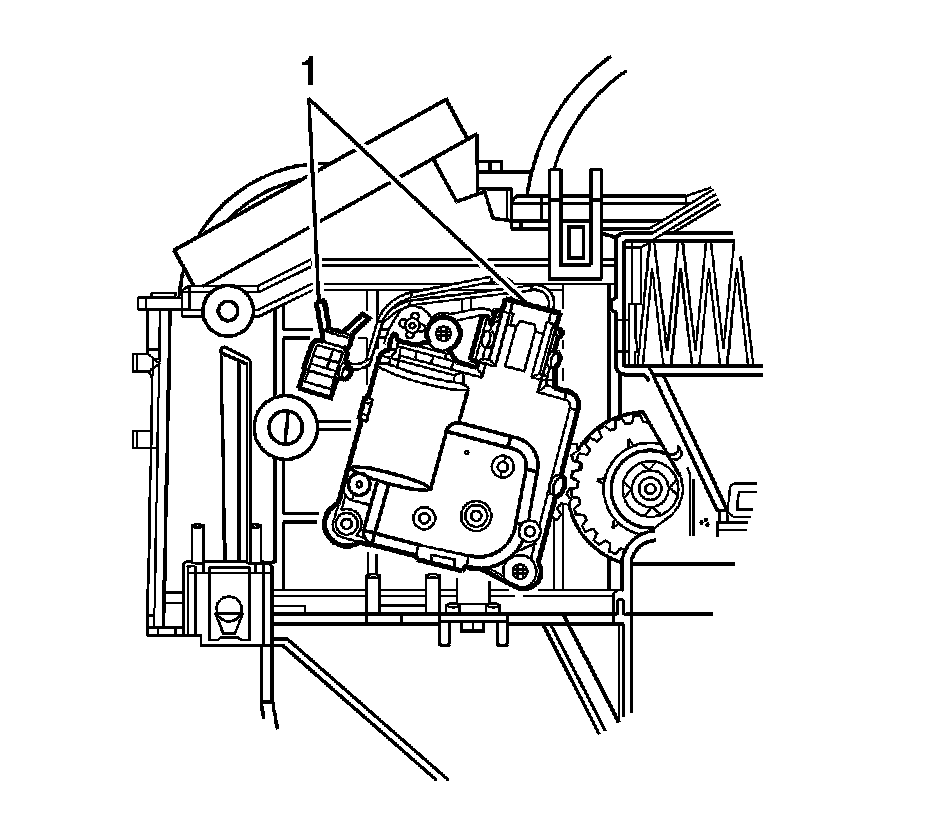

1. Remove the instrument panel (I/P) compartment.
2. Locate the air temperature actuator (1).
3. Disconnect the right side air temperature actuator electrical connector (2).




4. Remove the right side air temperature actuator bolts/screws (1).
5. Remove the right side air temperature actuator (2).
6. Remove the right side air temperature actuator levers (3, 4), if necessary.

Installation Procedure





Note: The actuator lever (2) can only be inserted into the door one way.

1. Install the right side air temperature actuator levers, if necessary.

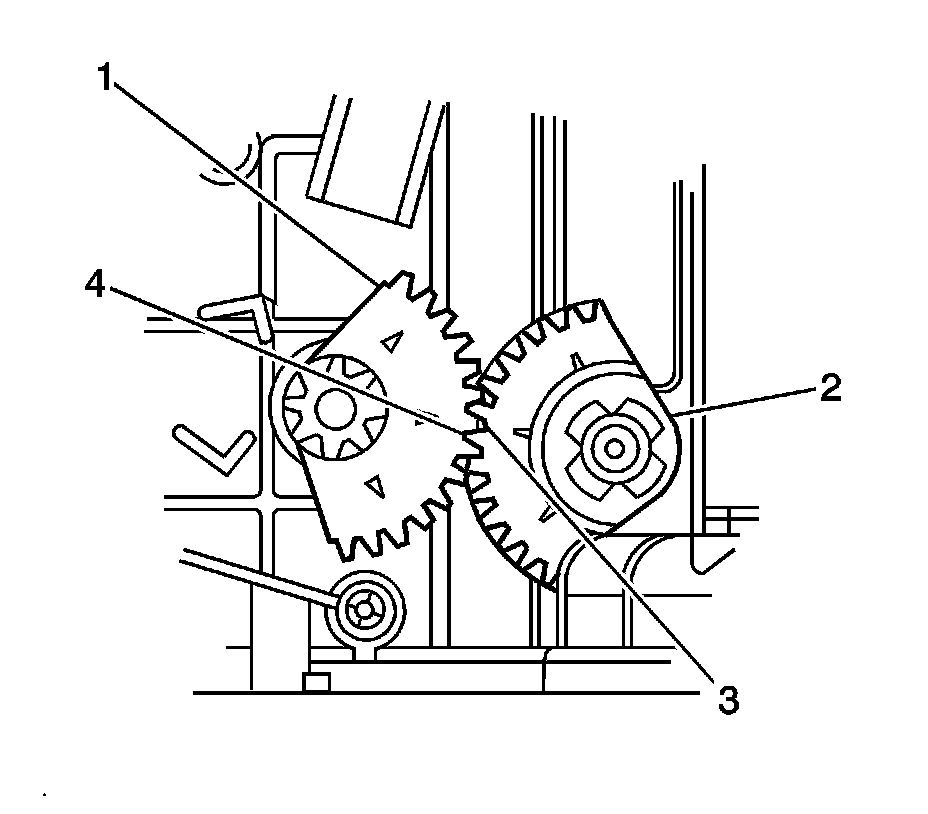

2. Check and correct the engagement between the actuator levers (1, 2).

1. Install the actuator lever (2).
2. Align the primary tooth (4) of the actuator lever (1) with the gap (3) in the actuator lever (2).




3. Install the right side air temperature actuator (2).

Caution: Refer to Fastener Caution Fastener Caution.

4. Install the right side air temperature actuator bolts/screws and tighten to 1.2 Nm (11 lb in).




5. Connect the right side air temperature actuator electrical connector (2).




6. Ensure that the clip (1) on the connector is fully inserted to the holder on the case.
7. Install the I/P compartment.
8. Re-calibrate the actuators. Refer to Actuator Recalibration Programming and Relearning.
