Transmission Extension Assemble




Transmission Extension Assemble

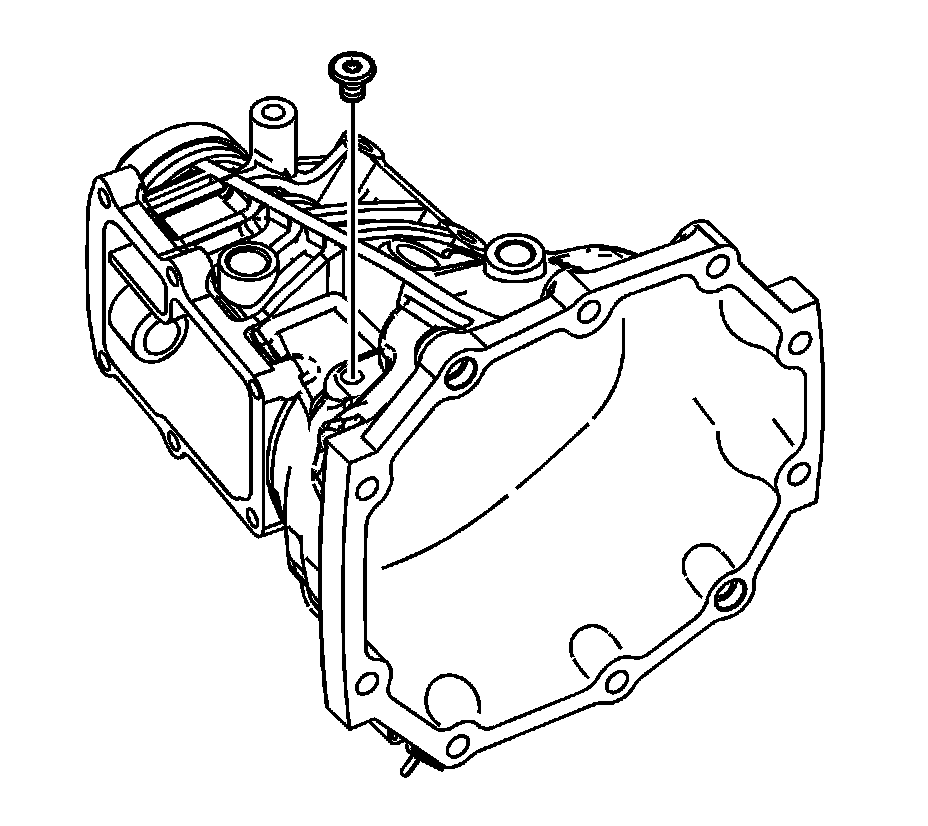

1. If removed, install the reverse control lever restrictor.

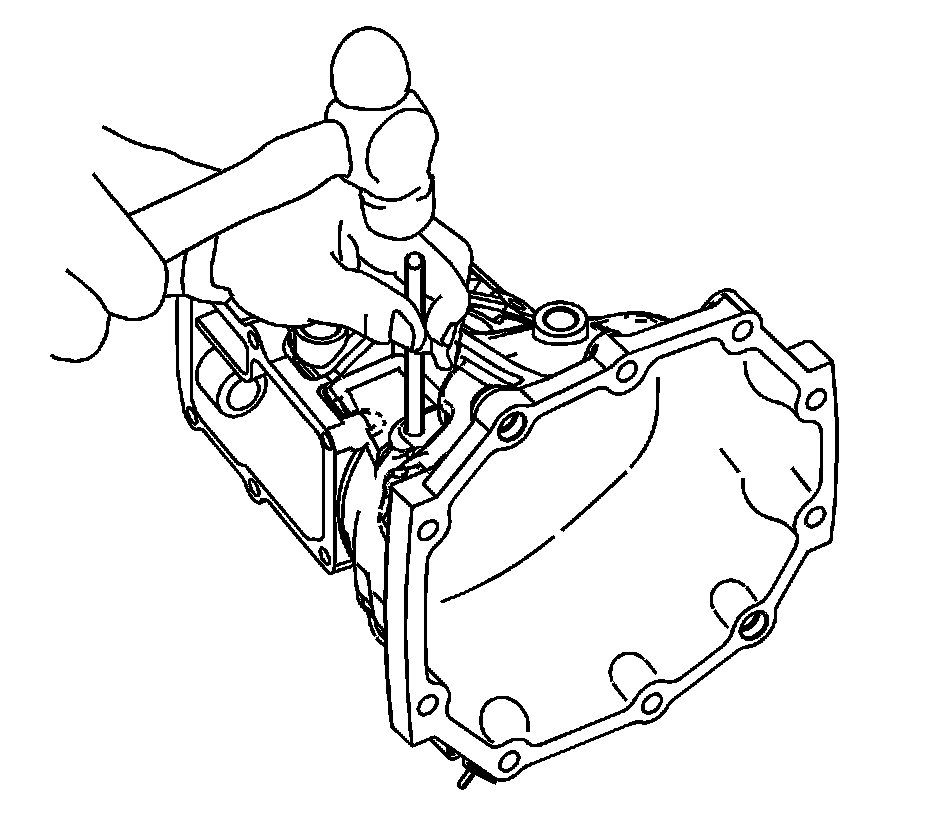

2. Install a new reverse control lever restrictor roll pin.





Caution: Refer to Fastener Caution (Fastener Caution).

3. Install a new reverse restrictor pin plug. Tighten the reverse restrictor pin plug to 19 Nm (14 lb ft).

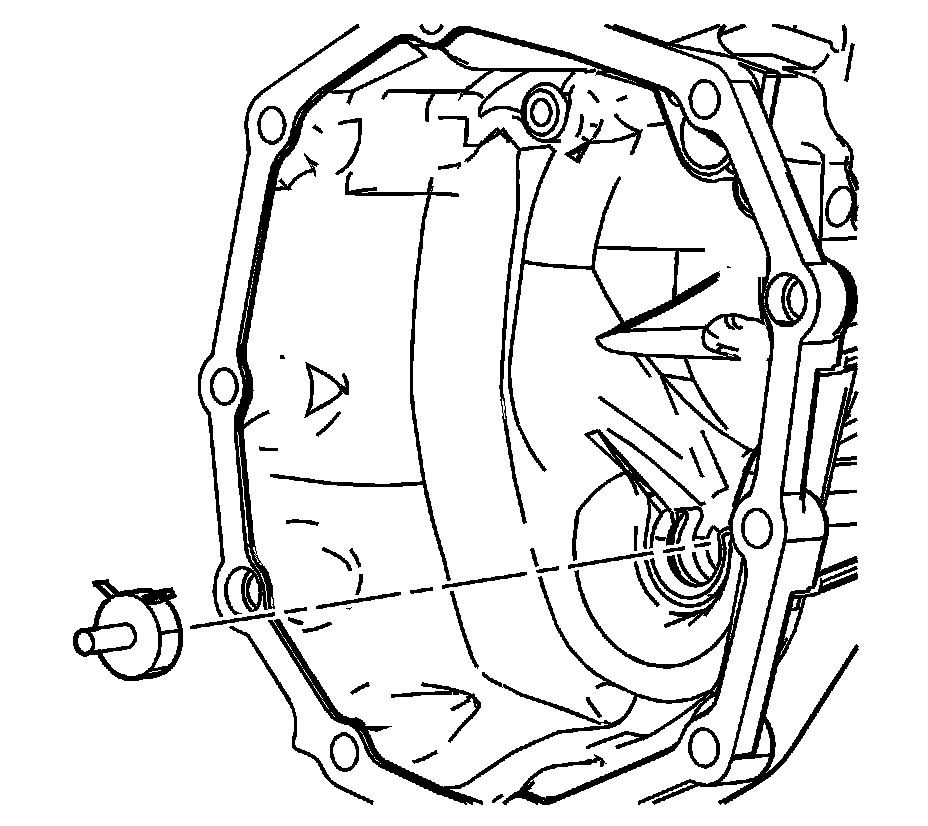

4. Install the oil receiver.




5. Install the oil trough.
6. Install the oil trough bolt. Tighten the oil trough bolt to 11 Nm (97 lb in).
