Transmission Extension Disassemble

Transmission Extension Disassemble

1. Remove the oil receiver.

2. Remove the oil trough bolt.
3. Remove the oil trough.

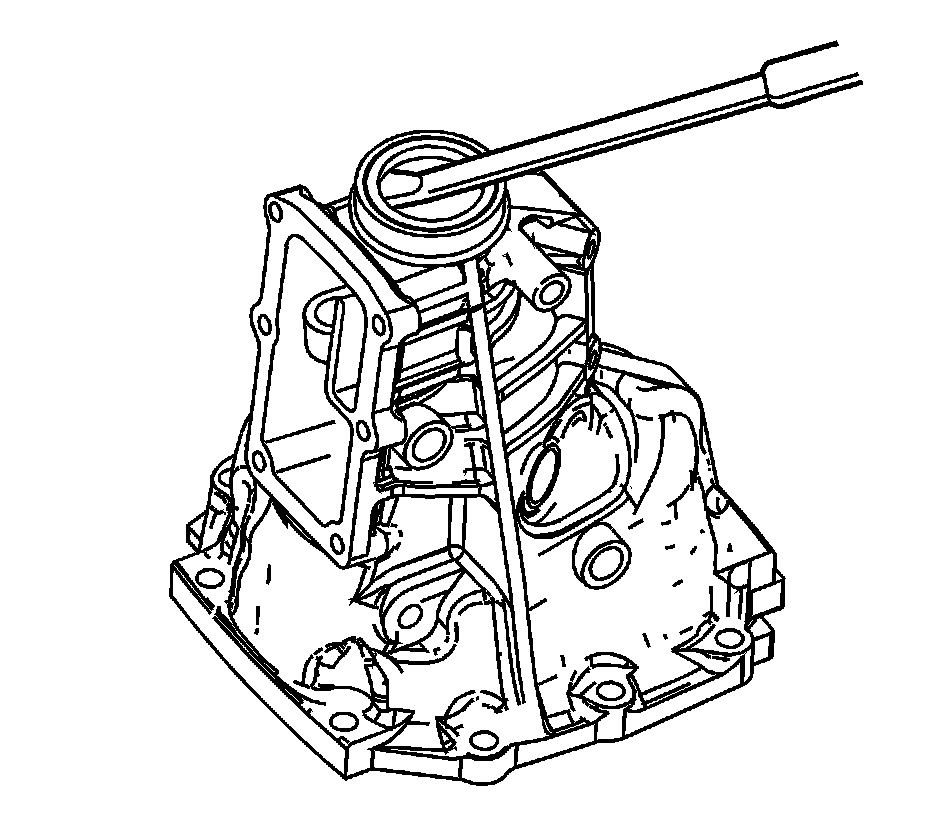

4. Using a suitable prying tool, remove the output shaft seal from the extension housing.

5. Remove the reverse control lever restrictor pin plug. Discard the plug. A new plug is required for assembly.

6. Remove the roll pin for the reverse control lever restrictor.

7. Remove the reverse control lever restrictor.
