Antilock Brakes / Traction Control Systems




Antilock Brake System Schematics

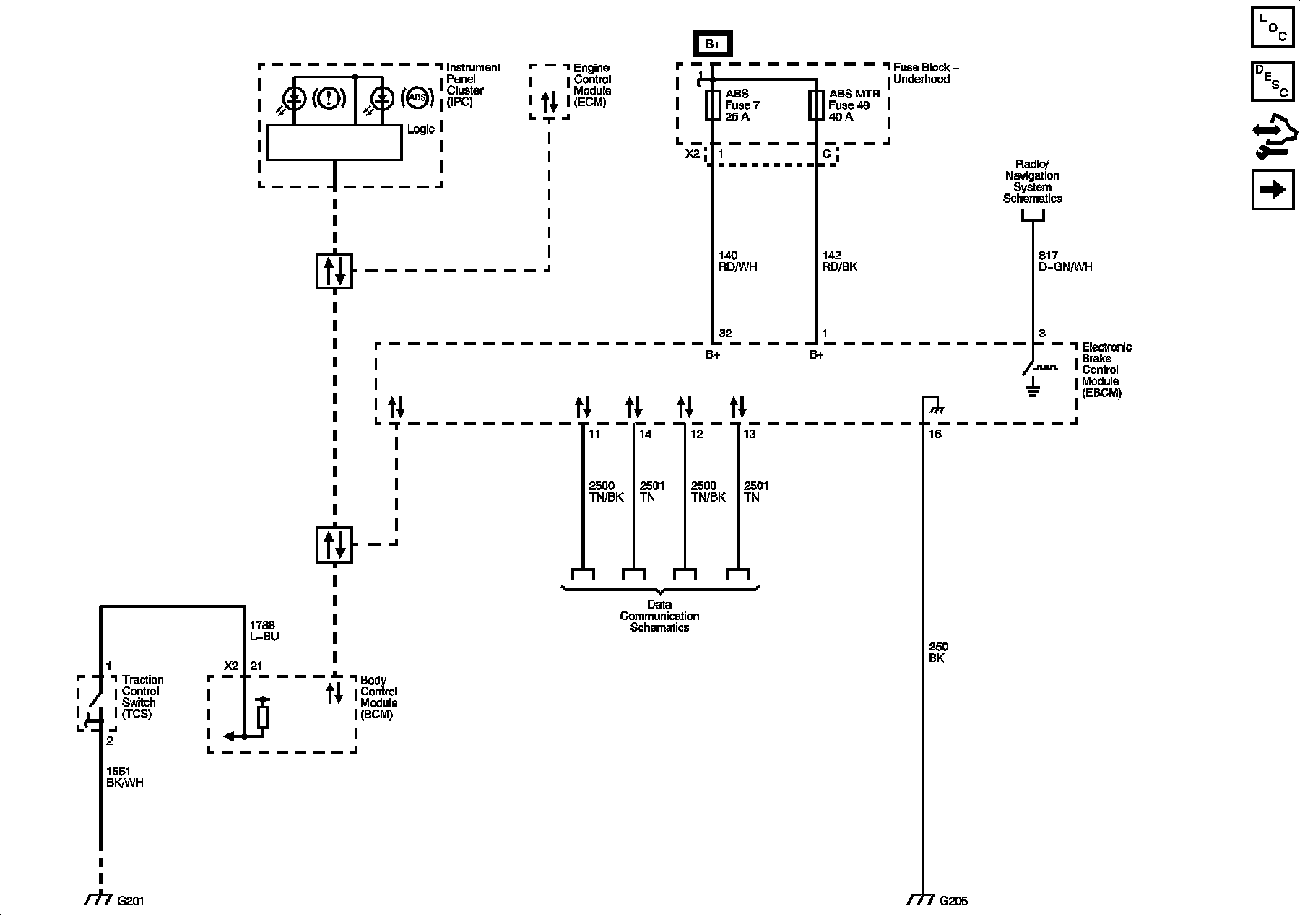

Serial Data, Traction Switch, and Instrument Panel

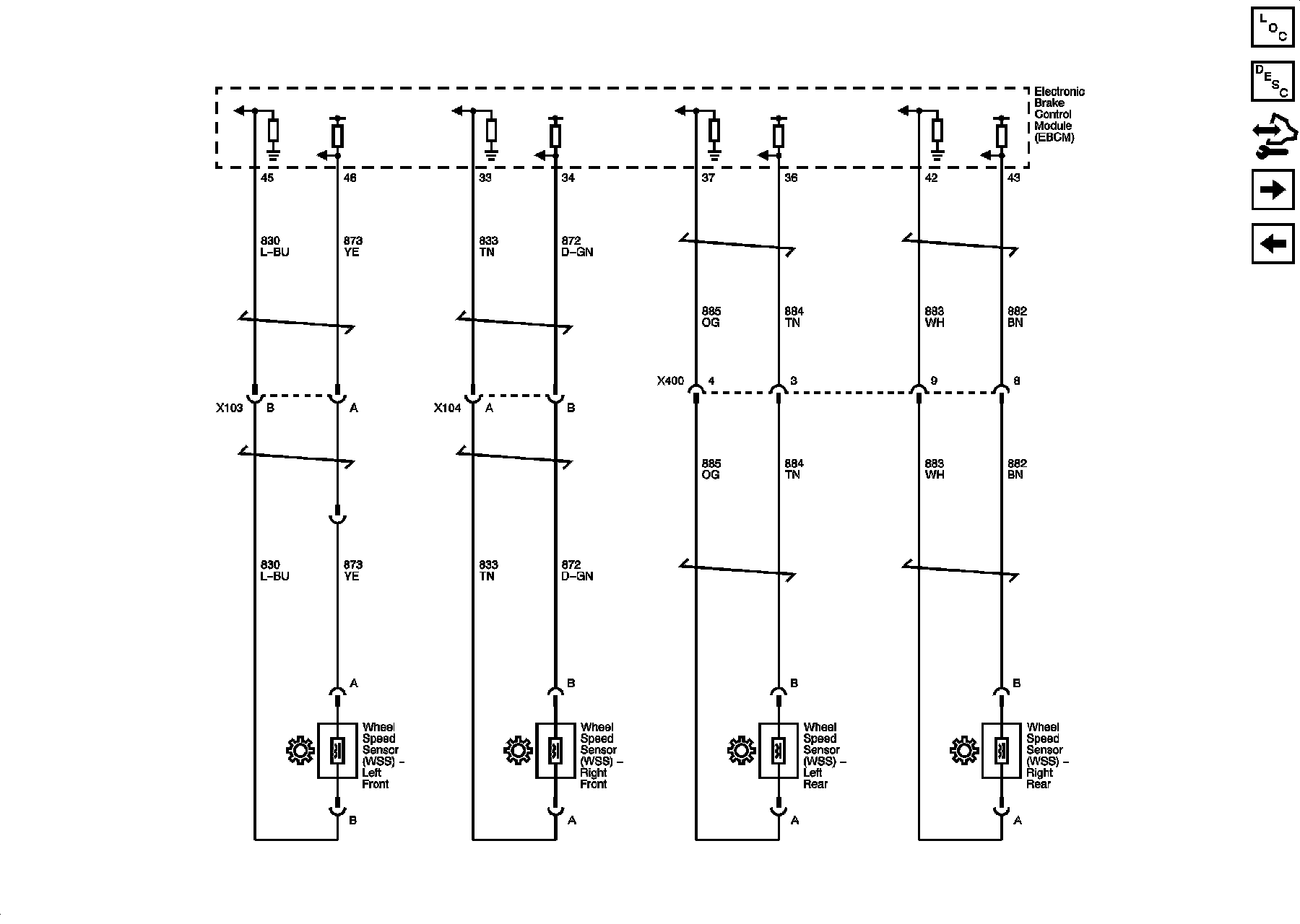

Wheel Speed Sensors






Yaw Rate and Lateral Accelerometer Sensor (3.4L)
