Defroster Air Outlet Replacement

Defroster Air Outlet Replacement

Removal Procedure

1. Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Service and Repair).

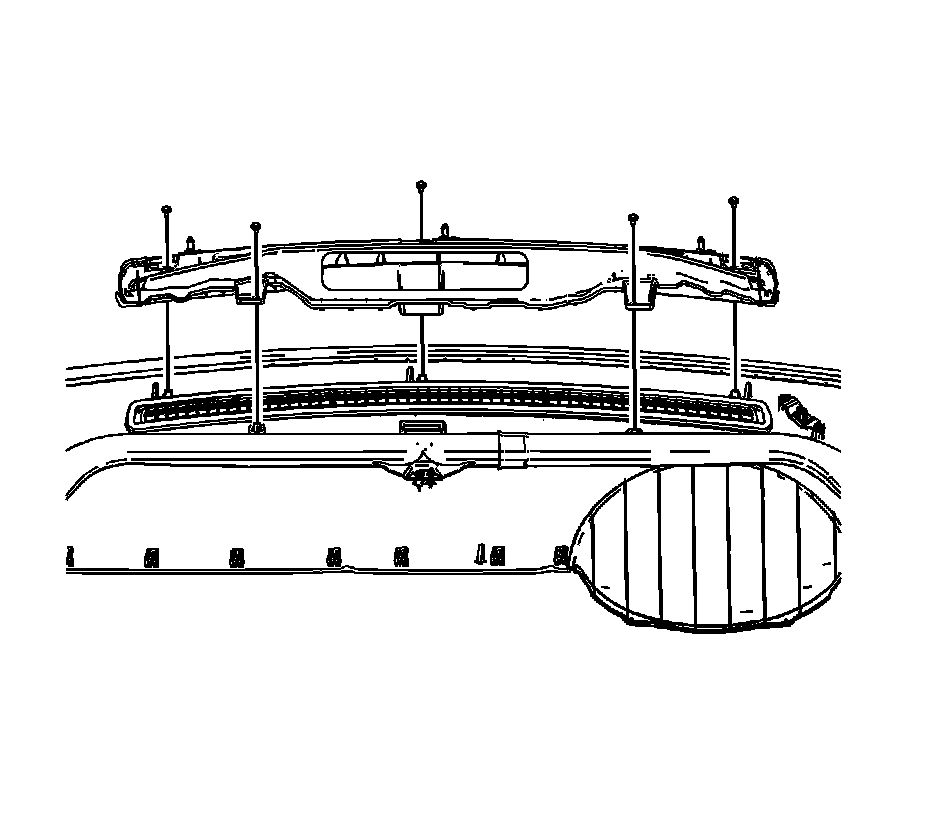

2. Remove the defroster air outlet screws from the I/P upper trim panel.
3. Remove the defroster air outlet from the I/P upper trim panel.

Installation Procedure

1. Inspect the seals, and replace if damaged, using Kent Industries adhesive backed foam tape P/N 46485 or equivalent.




2. Install the defroster air outlet to the I/P upper trim panel.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the defroster air outlet screws to the I/P upper trim panel.

Tighten the screws to 1 Nm (9 lb in).

4. Install the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement (Service and Repair).
