Rear Side Door Window Weatherstrip Replacement

Rear Side Door Window Weatherstrip Replacement

Removal Procedure




1. Lower the window.
2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement (Rear Side Door Water Deflector Replacement).

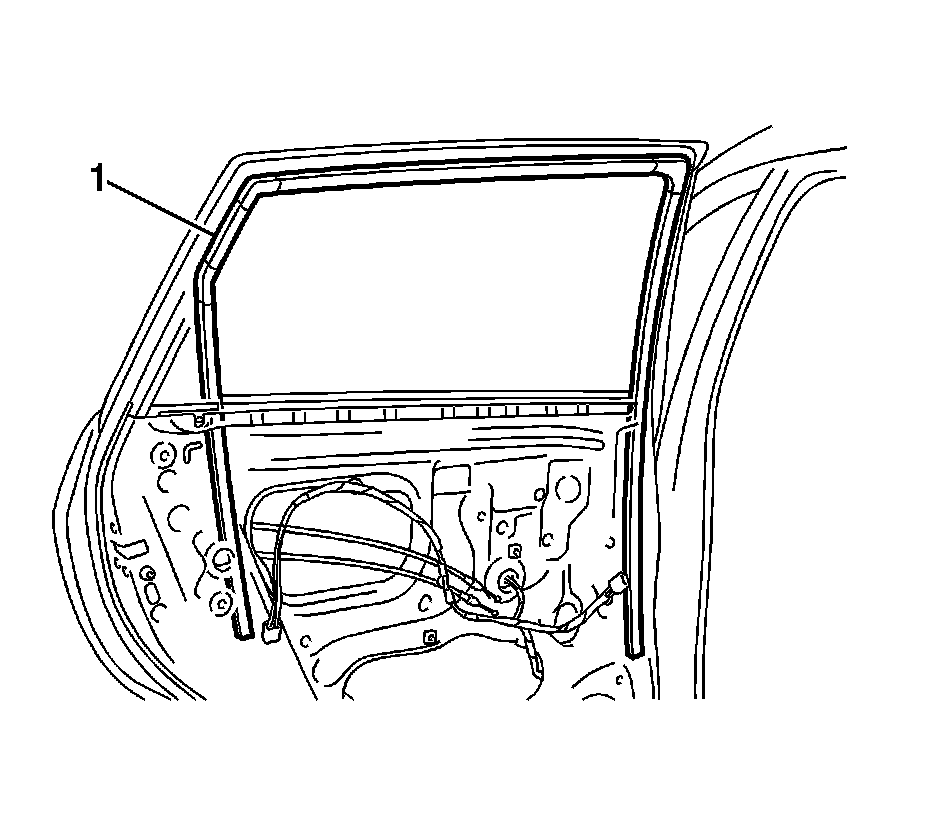

3. Remove the rear side door window weather-strip (1) from the guide channel.

Installation Procedure




1. Partially raise the window.
2. Install the rear side door window weather-strip (1) to the guide channel.
3. Install the water deflector. Refer to Rear Side Door Water Deflector Replacement (Rear Side Door Water Deflector Replacement).
