Removing and Installing Mixture Control Unit

REMOVING AND INSTALLING MIXTURE CONTROL UNIT

Removal

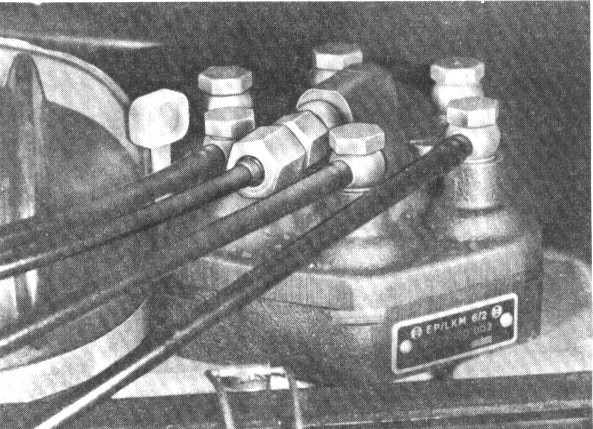

1. Disconnect all fuel lines and hoses from the mixture control unit. Detach fuel supply line from fuel filter.

Note: Use rag to prevent fuel spillage.

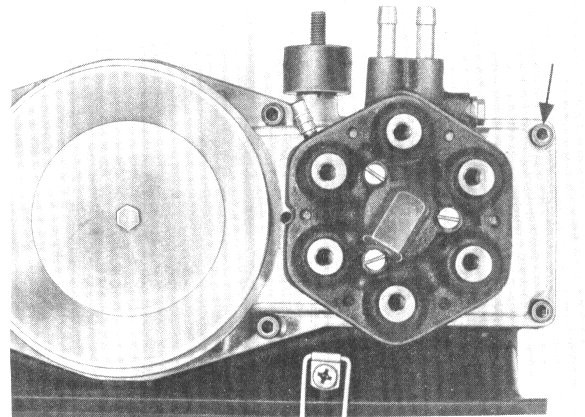

2. Unscrew 6 Allen bolts and remove with spring and plate.

3. Remove mixture control unit together with gasket.


Installation

1. Watch proper location of gasket.

2. Tighten Allen bolts to bottom, then back off 1 complete turn.

3. Use new gaskets in fuel line connections.

4. Bleed fuel line system.
