Ignition Timing: Adjustments
Adjusting Ignition Timing 1.
Run engine warm (oil temperature about 90°C).
2.
Connect engine tester.
3.
Pull off vacuum hose.
4.
Connect ignition stroboscope lamp.

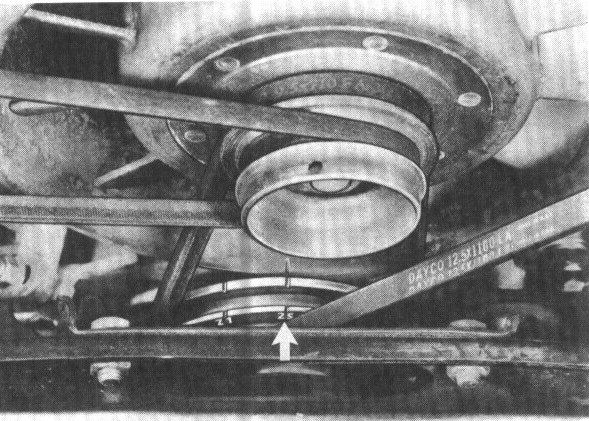

25° mark on pulley should be opposite notch on fan housing at 4000 rpm.

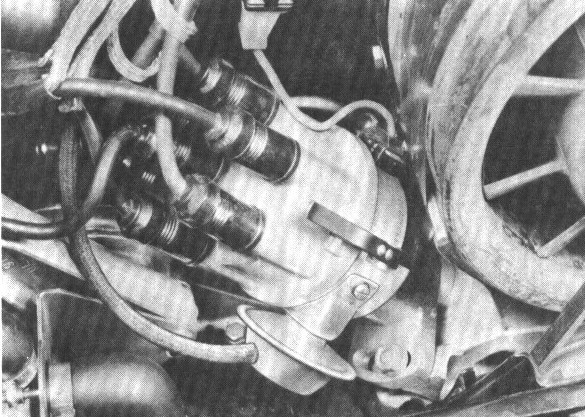

Loosen and turn
distributor to correct
ignition timing.
5.
Connect vacuum hose.
