Checking "Cold" Control Pressure
Checking Cold Control PressureThis test can be performed on a cold engine only.
It must definitely be performed when encountering starting or warm-up problems.

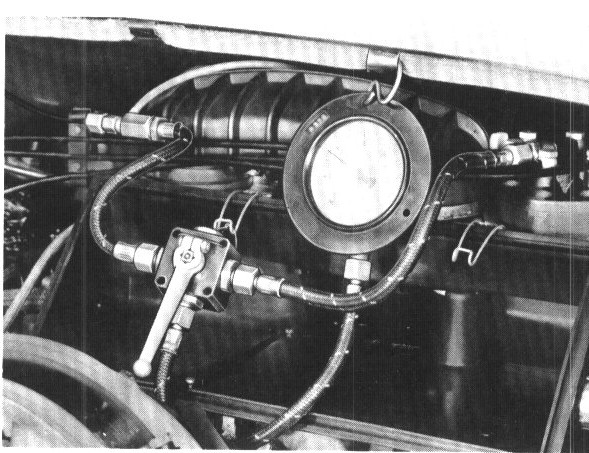

1. Turn selector valve to position 2. Switch the ignition on.
2. Pressure specifications for the given ambient air temperature are shown in the diagram.
3. Excessive deviations from the specified values are caused by a faulty control pressure regulator for warm running compensation which should be replaced in such cases.
