Engine Lubrication: Testing and Inspection

CHECKING OIL PRESSURE

Oil Pressure Tester VW 1342:

1. Drain engine oil.


2. Remove oil filter and oil pressure sensor.

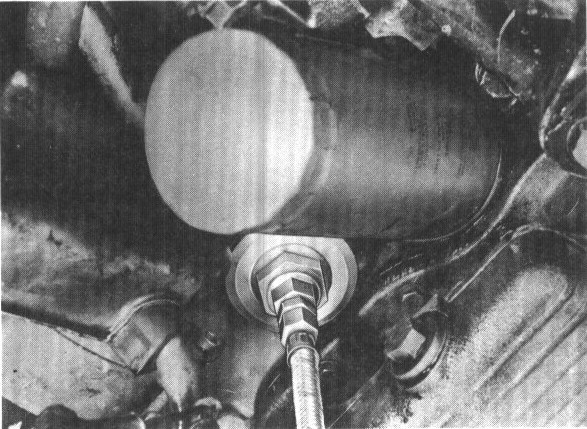

3. Screw oil pressure tester VW 1342 in conjunction with M 10 x 1 adapter, Part No. 999.105.013.02, and M 10 x 1 / M 18 x 1.5 adapter, Part No.901.101.175.01, in plug opening for oil thermostat housing in place of the oil pressure sensor. Mount oil filter and add oil.






4. Run engine to operating temperature (about 80°C / 176°F).

5. Have a second person raise the engine speed to 4000 rpm.



6. Read oil pressure on tester. Value must be higher than 5 bar (73 psi).
