Air Door: Adjustments
1.
Set
setting motor to maximum cooling output.
2.

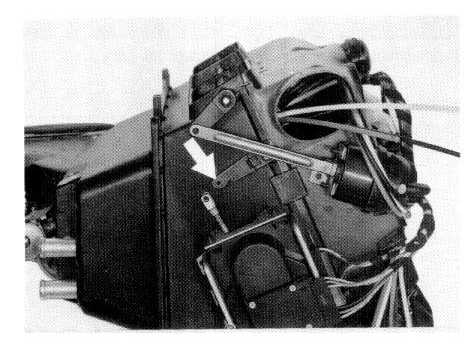

Disconnect
setting motor linkage.
3.
Move lever downward to maximum cooling position.
4.

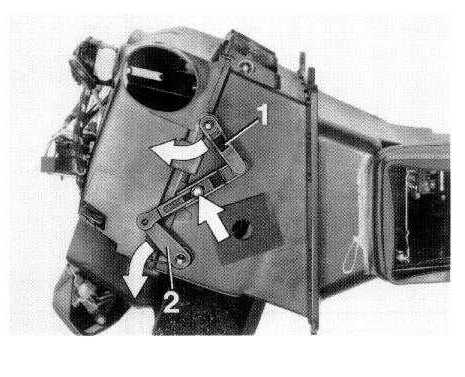

On right-hand side, remove securing screw of lever system.
5.
Press lever 1 forward and lever 2 down as far as possible. Retighten securing screw.
6

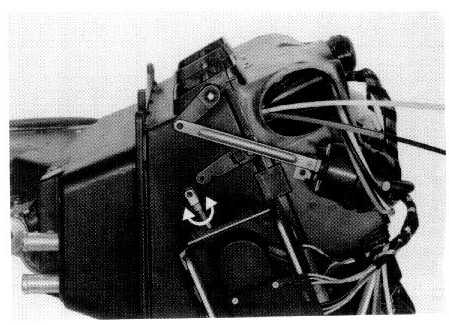

Turn linkage until holes are aligned.
7.
Engage pin.
