A/C - Refrigerent Oil Volume Capacities

Group
8



Number
9208



Model
All



Part Identifier
8701

December 22, 1992

Subject:
Air Conditioning Oil Filling Capacities



ATTENTION:
Service Manager/Service Technician

This bulletin supersedes Technical Bulletin Group 8, Number 8604, Book C, pages 197-199.

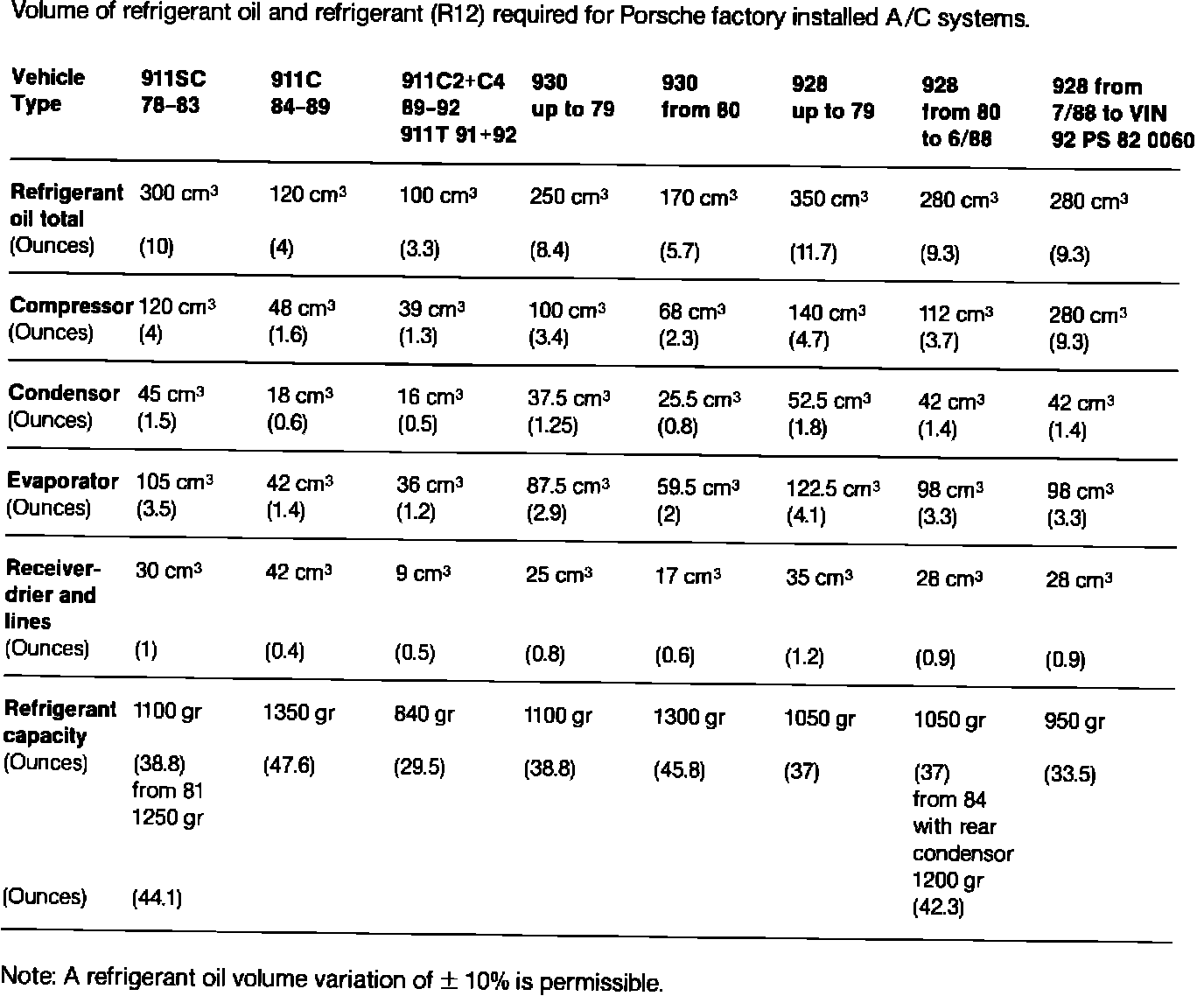

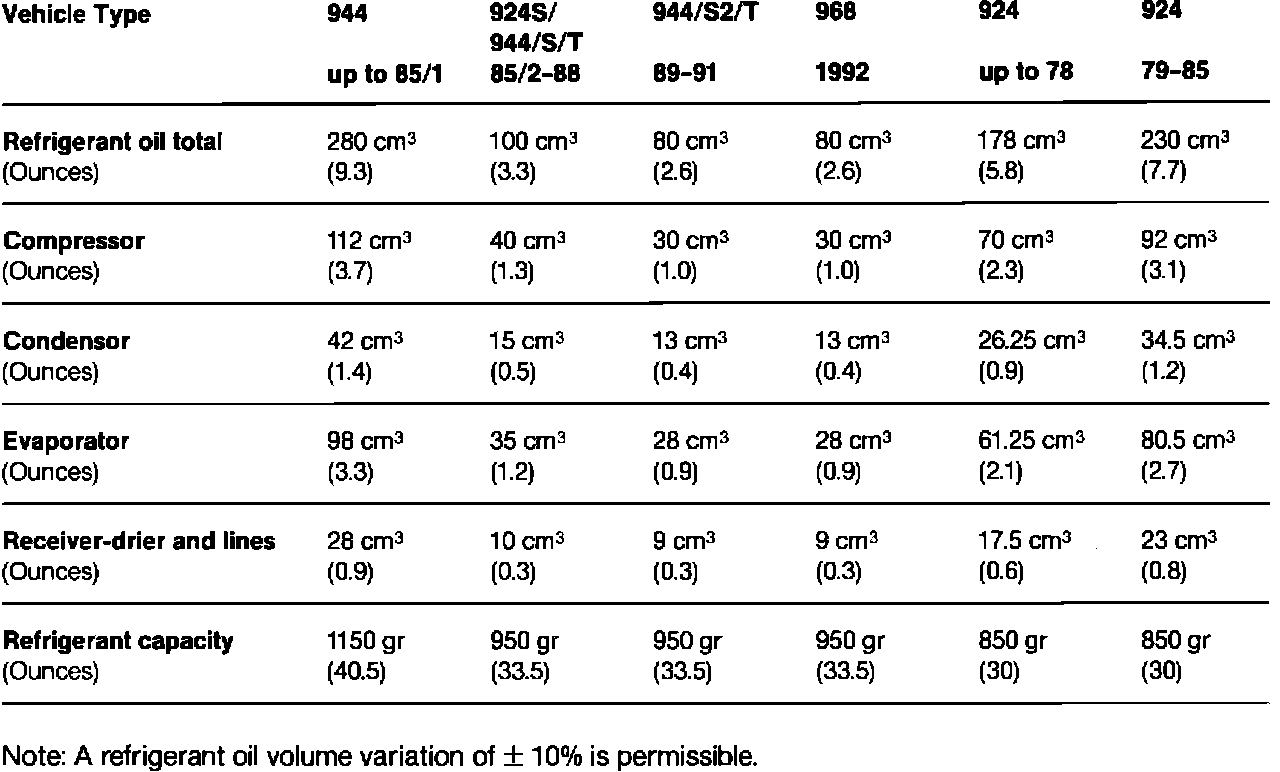

Volume of refrigerant oil and refrigerant (R12) required for Porsche factory installed A/C systems.

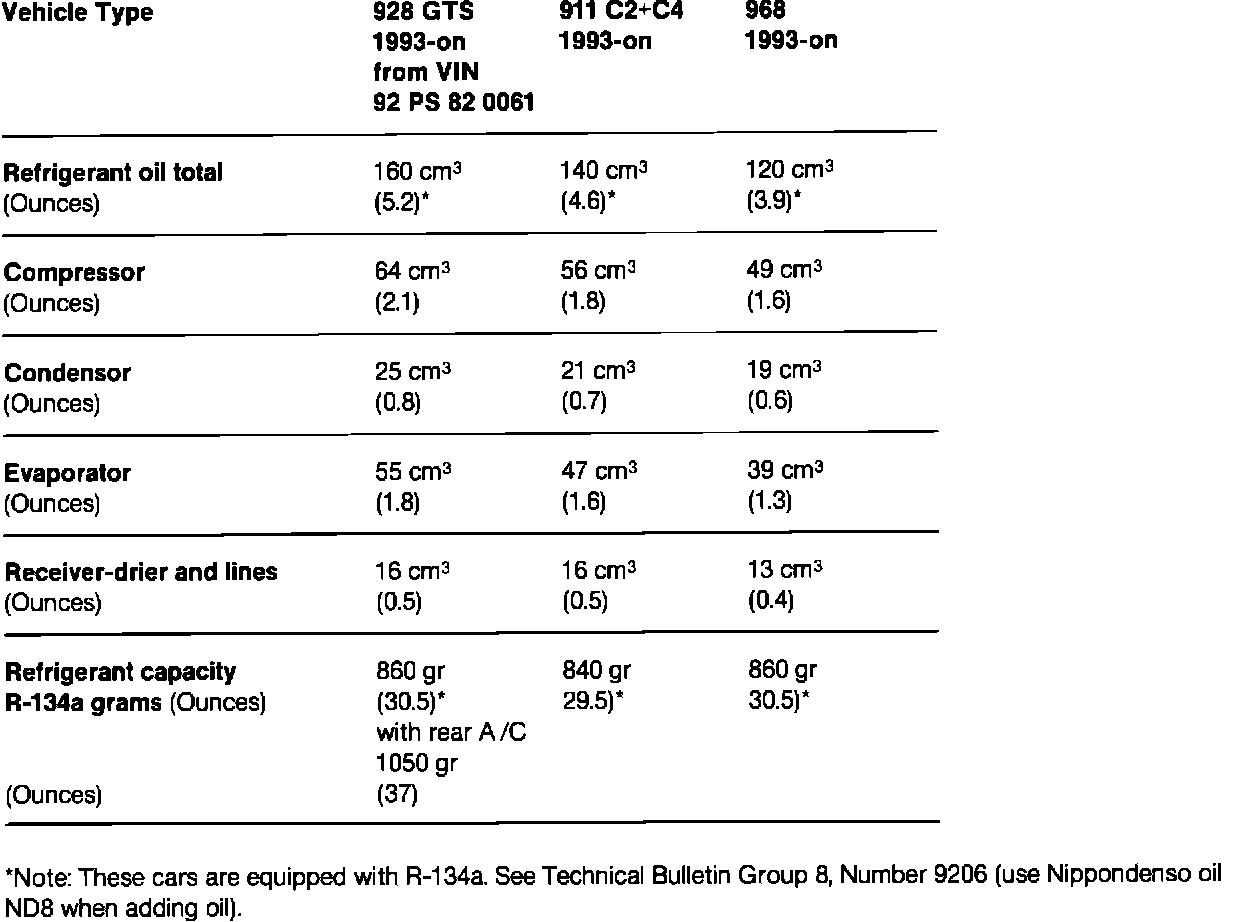

Volume of refrigerant oil and refrigerant (R-134a) required for Porsche factory installed A/C systems.

Important:
Refrigerant types and refrigerant oils are not compatible and must never be mixed. See Technical Bulletin Group 8, Number 9206.
