Clutch: Testing and Inspection
The amount of
clutch disc wear will not be indicated at the clutch pedal because of the automatic hydraulic clutch adjustment. Check for wear according to the following procedures.
-

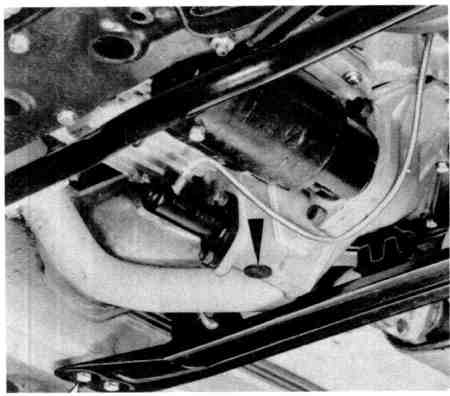

Remove plug from inspection hole.
-
Visually inspect position of release lever. The wear limit has been reached when the front edge of the release lever just appears in inspection hole.
