Cabriolet Top Control Unit - Revised: Overview
Group6
Number
9613
Model
911
Part Identifier
6182
December 5, 1996
Subject:
Cabriolet Top Control Unit
ATTENTION: Service Manager / Service Technician
Models Affected:
911 Carrera, 911 Turbo, M.Y. 1986-89 and 911 Carrera 2/4, M.Y. 1990 to 1994 and 911 Turbo, M.Y. 1991, 92 and 94
Concern:
The Cabrio top control unit is now superceded to the type used in the 911 Carrera (993). The original equipment part for the above mentioned models is no longer available.
General Information:
As a result of the parts supersession, when the 993 618 313 00 control unit is installed, additional wiring work is necessary.
For the 911 Carrera and 911 Turbo M.Y. 1986 through 1989, refer to the wiring diagrams and specific instructions found on pages 2 through 5 of this bulletin.
For the 911 Carrera 2/4 and 911 Turbo M.Y. 1990 through 1994, refer to the wiring diagrams and specific instructions found on pages 6 through 8 of this information.

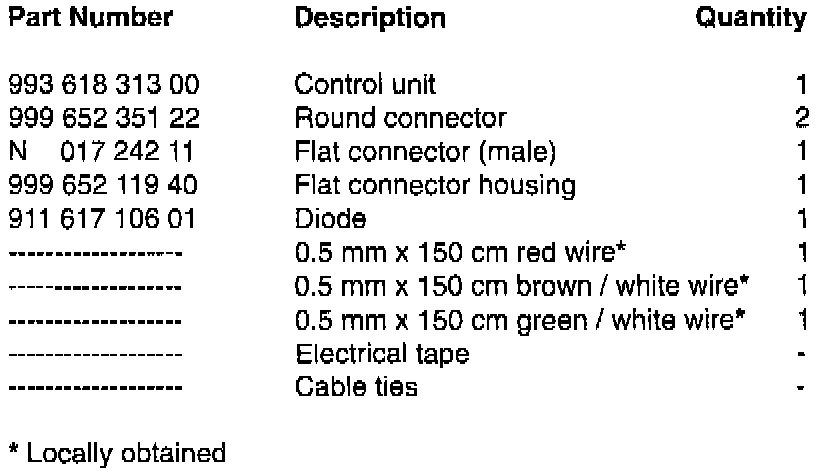

Parts Information:
The additional parts will be required when installing the 993 618 313 00 control unit into the 911 Carrera or 911 Turbo M.Y. 1986 through 1989 as shown.
